1. Machine material: 100% 304 stainless steel
2. Power supply: 3Kw, AC380V, 50/60Hz, three-phase power supply
3. Mixing chamber design volume: 280L
4. Bucket size: 1.05*0.5*0.6 meters
5. Cylinder: 2mm, baffle plate: 4mm. Main shaft: 75mm, screw band: 6mm
6. Mixing time per batch: 5-8 minutes
7. Bottom has a cleaning opening, and the front has a manual cutter for discharging
8. Reducer uses a cycloidal pin reducer
9. The upper cover can be opened and is equipped with a hydraulic support rod
10. Equipped with a control cabinet

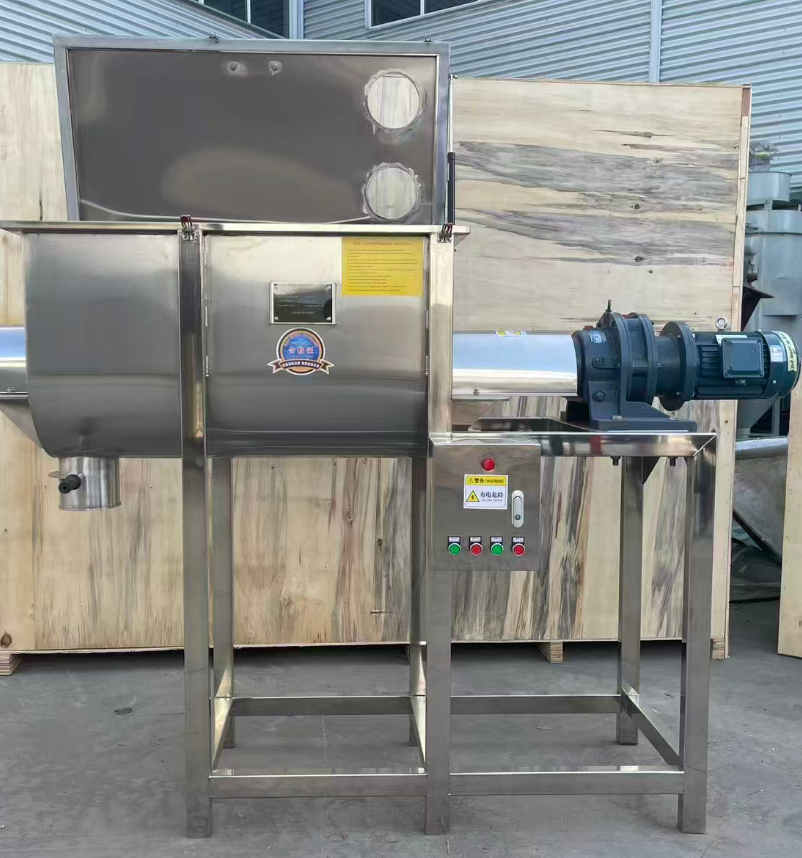

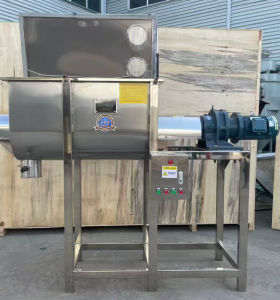

This 200L Powder Mixing and Blending Machine is constructed entirely from 100% 304 stainless steel, ensuring excellent corrosion resistance, hygiene and easy cleaning, fully meeting food and industrial production standards. With a mixing chamber volume of 280L and bucket dimensions of 1.05×0.5×0.6m, it provides ample space for efficient powder blending. The machine is equipped with a robust structure: 2mm cylinder, 4mm baffle plate, 75mm main shaft and 6mm screw band, ensuring stable and durable operation.
Driven by a 3Kw AC380V power supply and a cycloidal pin reducer, it completes uniform mixing in just 5–8 minutes per batch. The upper cover is supported by hydraulic rods for easy opening, while a bottom cleaning port and front manual discharge cutter facilitate convenient cleaning and material discharge. Paired with a dedicated control cabinet, the machine features simple operation, reliable performance and high mixing uniformity, ideal for powder processing in food, chemical and pharmaceutical industries.
