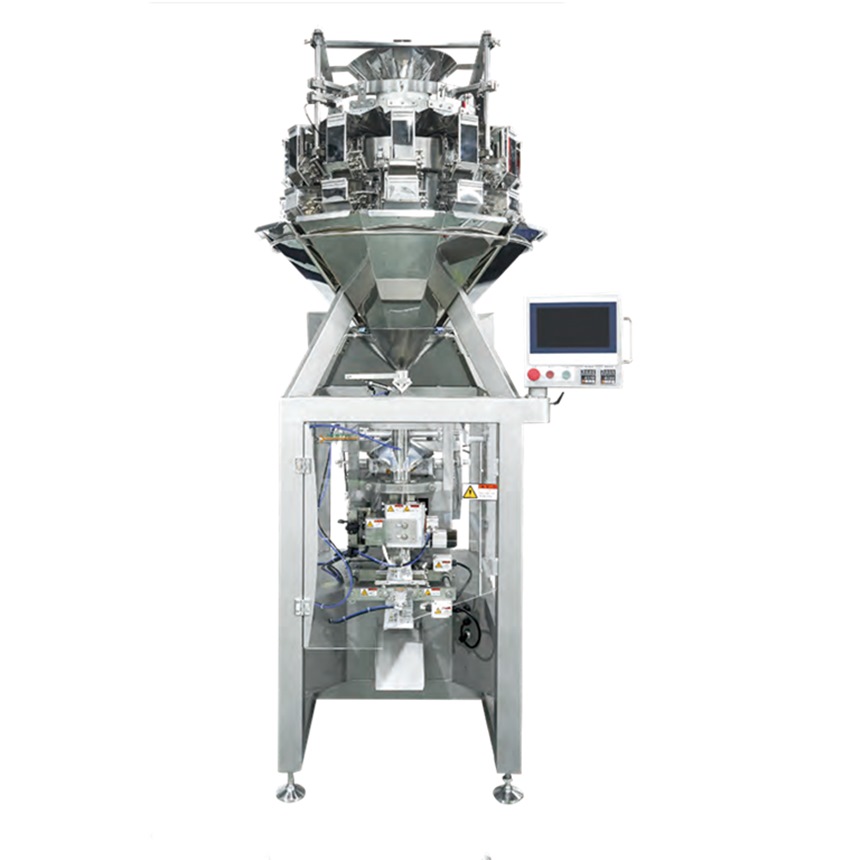

MC-180YT INTEGRATED WEIGHING AND PACKING ALL IN ONE MACHINE

Packing speed：20-100 bag/min

Film size：100-320 mm

Package length：50-190mm

Package width：50-150mm

General power：5.1 KW

Weighing range：10-300g

Accruacy：+0.3-2g

Max.speed：20-100bags/min

Email: [email protected]

WhatsApp / Phone: +8617739786040

Scope of application Performance advantage Detail picture

Scope of application

Performance advantage

The machine is controlled by three servos.
Ten-inch touch screen display, easy operation and clear working status.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
The machine design conforms to GMP standard and has passed CE certification.

Model	MC-180YT
Packing speed	20-100bag/min
Film size	100-320mm
Package length	50-190mm
Package width	50-150mm
General power	5.1KW
Model	M12/0.8L
Weighing range	10-300g
Weighing accuracy	±0.3-2g
Weighing max.speed	20-100bags/min
Packaging film type	PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC.
Power supply	220v/50Hz
Machine size	1609x1007x2513mm
Net weight	800kg
Main Motor power	1.25Kw
Power Of electronic combination scale	1.5Kw

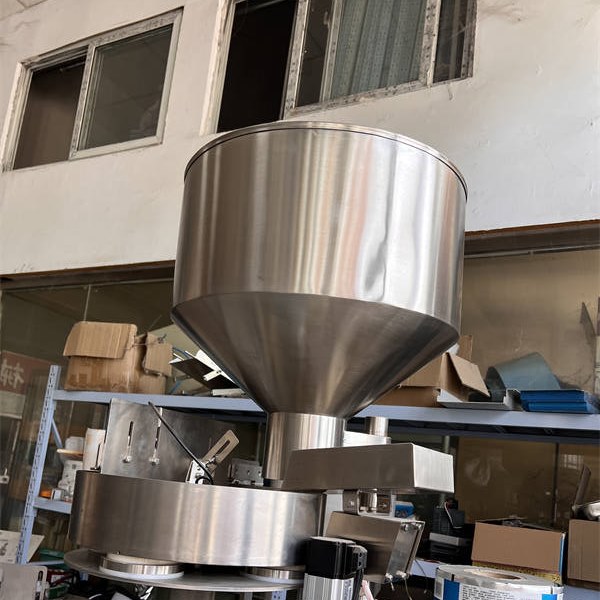

Detail picture
