Punching Machine

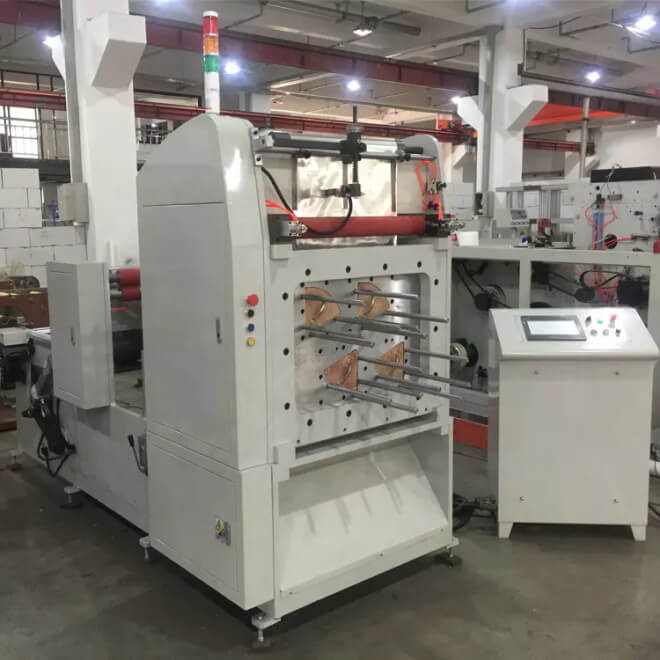

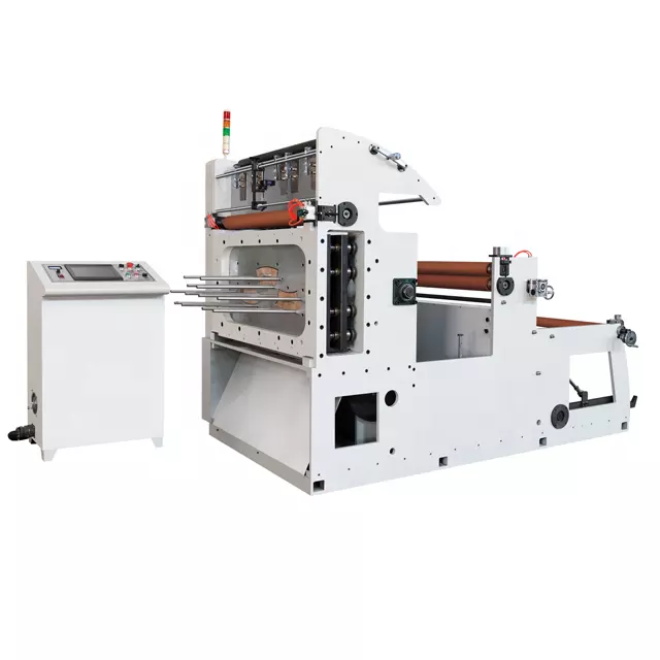

HF-CQ-850 series automatic roll punching machine based on international advanced technology, it’s widely used in paper cup fan products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication.

Punching speed 180-200times/min
Max. feeding width 860mm
Max. unwinding diameter 1400mm
Max. die cutting width 400*850mm

Email: [email protected]

WhatsApp / Phone: +8617739786040

SEND Inquiry Chat Online

Introduction Specification Product Features

Introduction

Specification

Product name	Automatic paper cup punching machine
Punching speed	180-200times/min
Max. feeding width	860mm
Max. unwinding diameter	1400mm
Max. die cutting width	400*850mm
Precise positioning	±0.15mm
Max. stacking length	400mm
Air pressure	0.6MP
Voltage	380V
Total power	8.5kw
Weight	3500kg
Dimensions	3500mm1600mm2000mm

Product Features

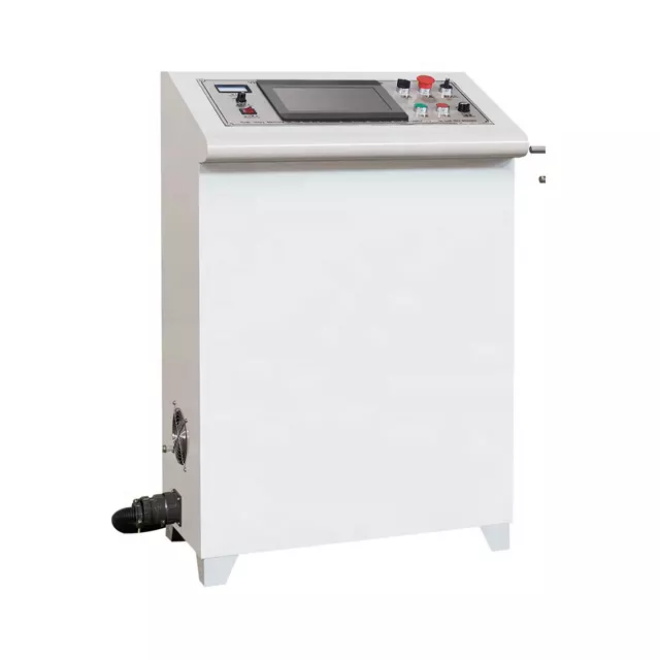

1. It adopts micro-computer, human-computer control interface, servo positioning, alternation current frequency converter
2. Automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system;
3. Electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing;
4. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing;
5. All the key parts and controls of the machine are imported products and finish machining.
