1.Desktop layout separates the transmission mold, making cleaning and maintenance convenient.
2.The paper suction structure has been upgraded, with an output capacity of 80-100 pieces per minute.
3.PLC intelligent control is adopted, compatible with 5-16 ounce corrugated cups.

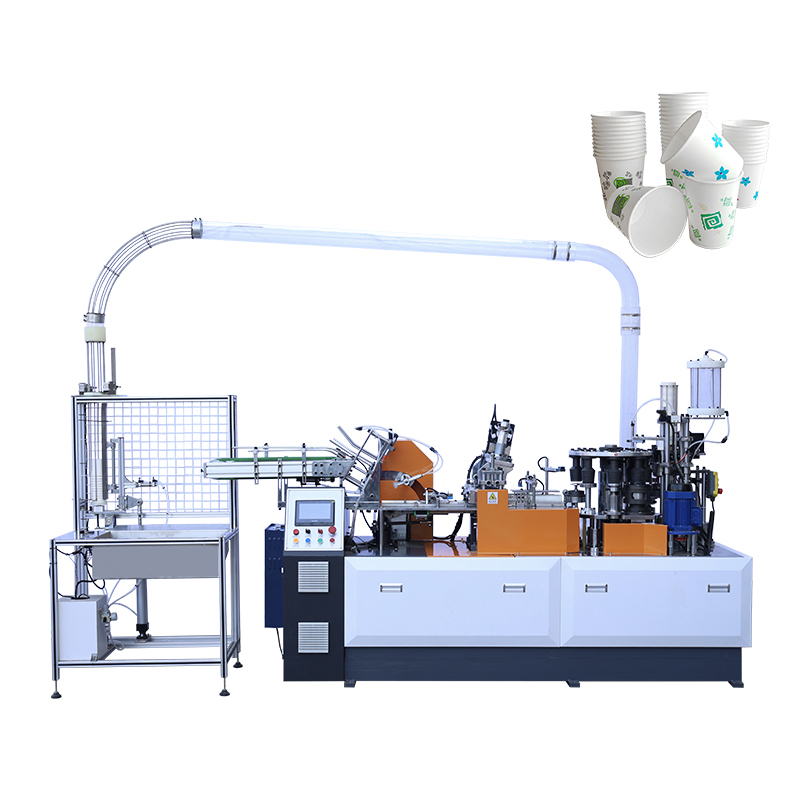

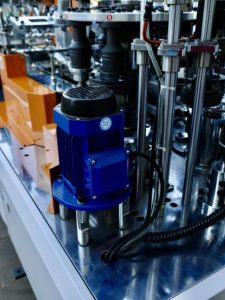

The external-mounted hollow corrugated paper cup machine adopts a desktop layout, which separates the transmission components and the molds. The transmission components are located beneath the platform, while the molds are on the platform. This layout facilitates cleaning and maintenance. The machine uses automatic spray lubrication, a longitudinal shaft transmission structure, an open cylindrical slot wheel indexing mechanism, and gear transmission to ensure the stability and quality of the entire machine. For the electrical components, PLC, photoelectric tracking, and servo feed are used to control the operation. The production capacity of this type of machine can reach 80-100 / min, and it is suitable for producing 5-16 ounces of cold/hot cups with external hollow corrugated packaging. The paper suction structure has been updated, making the paper suction more stable.
| HF-WT100 External-mounted hollow corrugated paper cup machine | |
| Weight | 1700 kg |
| Machine packing specifications (without wooden box) | Length: 2880mm x Width: 1060mm x Height: 1650mm |
| Power supply configuration | Three-phase 380V, 4KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| Production capacity | 80-100 pcs/min |
| Paper type | External laminated hollow corrugated paper |
| Paper weight | 180-330g/㎡ |
| Paper cup specification | (D1 cup opening) 50 – 90mm (D2 cup bottom) 40 – 70mm (H cup height) 60 – 135mm |
| Control panel | 7 inches |
| Receiving cup rack | 1000 x 750 x 1600mm |
