1.Replacing three discs with a single disc, it has a lower failure rate and is easy to operate.
2.10 workstation configuration, speed 90-120 pieces per minute.
3.Fully automatic process, capable of making various paper cups ranging from 3 to 16 ounces.

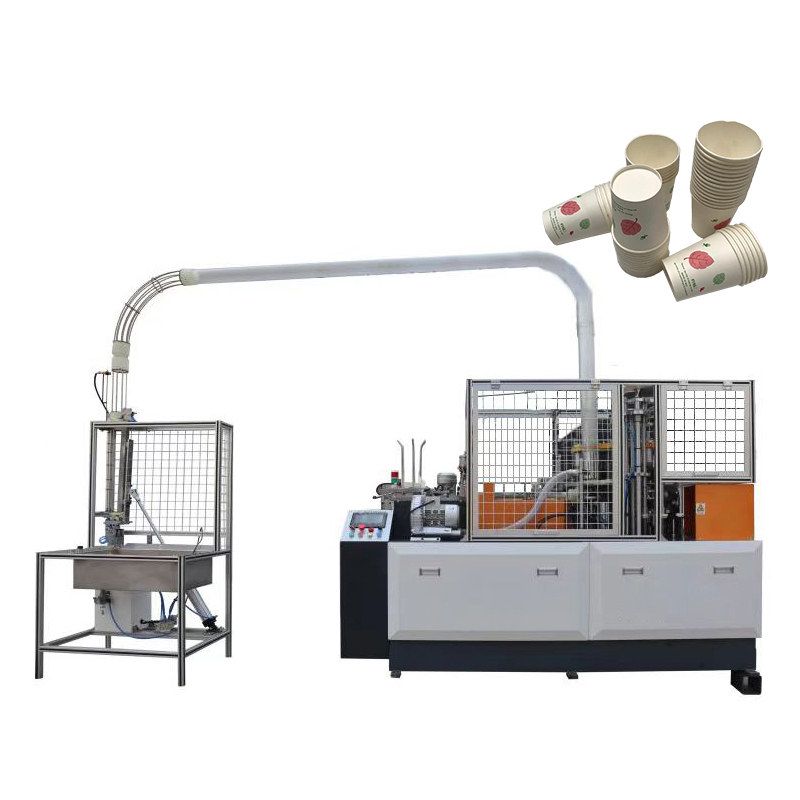

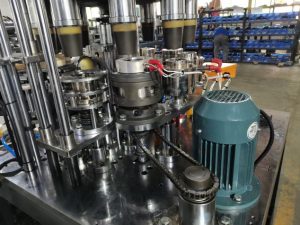

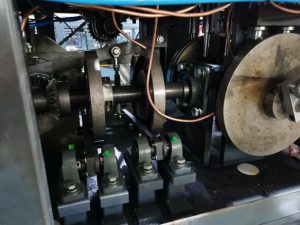

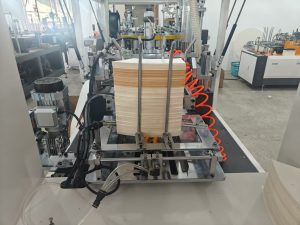

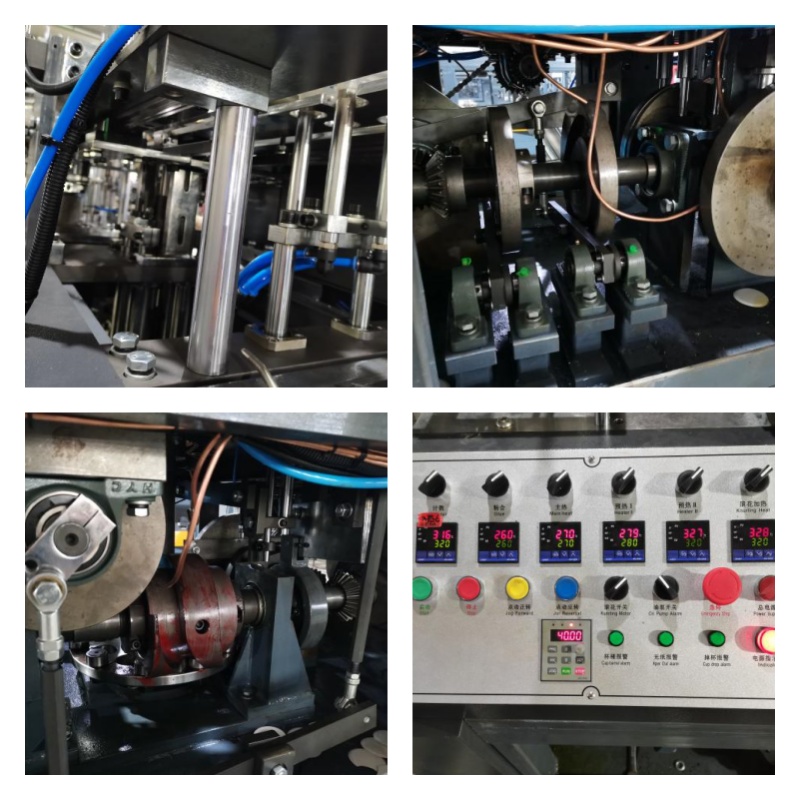

The working principle of our paper cup machine is that a main motor drives the whole machine to work, and realizes the perfect fusion of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine, so that the machine failure rate is greatly reduced, and the training time for the operator is reduced.This machine has 10 stations, 10 stations grinding tools, fold against the flower preheating 5 groups of stations.The machine running speed is increased to 90-120 can be customized to 3-16oz single and double shower film paper cups according to the customer request.Is a fully automatic paper cup molding equipment, through multiple automatic paper, paper return device (ensure accurate positioning), ultrasonic or copper welding, mechanical paper cylinder transfer, oil injection, bottom, folding, preheating, rolling, cup, unloading continuous process, can stable production of different specifications of paper cup, is our company independent research and development after comprehensive technical improvement can improve the stability of the paper cup equipment.
| Model | HF-GS120 |
| Production speed | 90 to 120 minutes 90-120 pcs/min |
| Voltage | 380V/50Hz three-phase |
| Machine package size | 2180x1050x1600mm (Length * Width * Height L*W*H) |
| material requirements | Single and double laminated paper |
| Power | 7kw |
| Weight | 2100Kg |
| Corresponding to the paper cup size | 3-16oz |
| 速度speed | 90-120pcs/min |
| Paper thickness requirements | 150-350g/㎡；±20g/㎡ |
| Gas supply requirements | 0.6-0.8mpa；0.4m³/min |
| Machine size of machine machine machine | 900x600x1800mm (Length * Width * Height L*W*H) |
| The cup body sticks in | Ultrasonic / Copper Strip (Ultrasonic for quantities over 12 ounces) |
| Bottom rolling flowers | Bottom heating (5 groups of heating) |
| Molds can be customized according to the customer’s requirements. | |
