1.The desktop layout separates the transmission molds, making cleaning and maintenance more convenient.
2.The servo transmission is combined with automatic lubrication, ensuring the overall stability and reliability of the machine.
3.PLC intelligent control, with an output capacity of 130-160 pieces per minute.

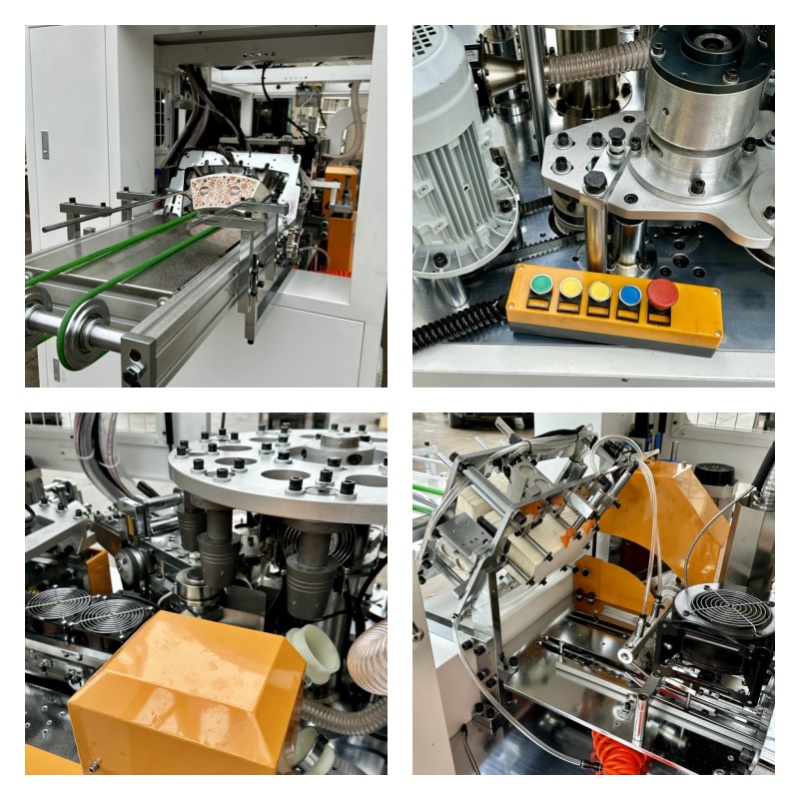

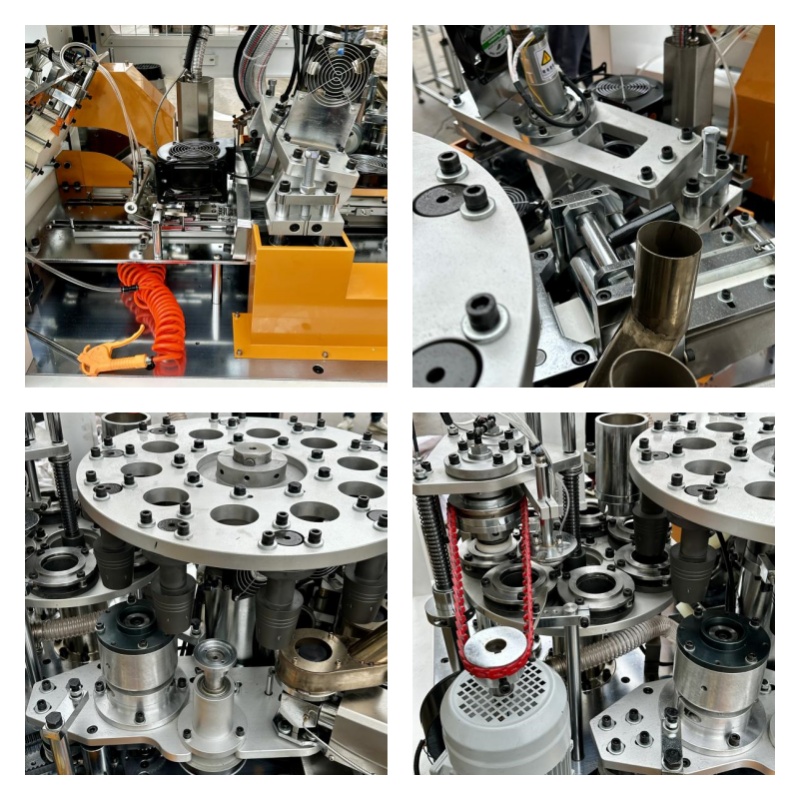

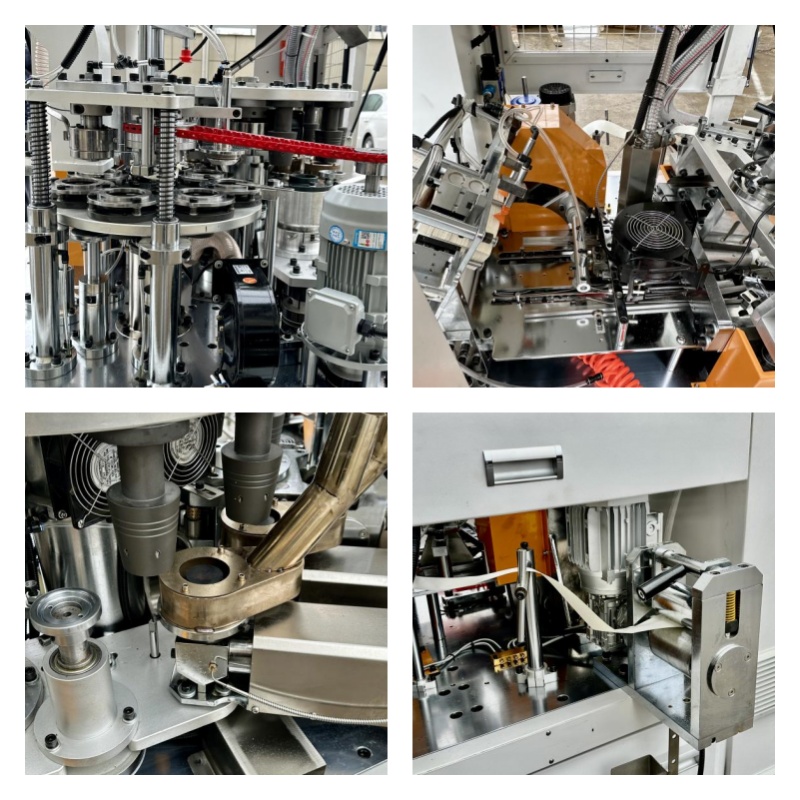

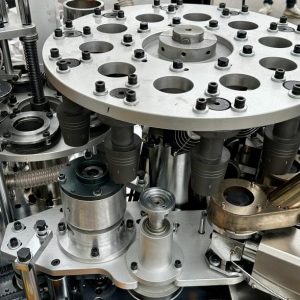

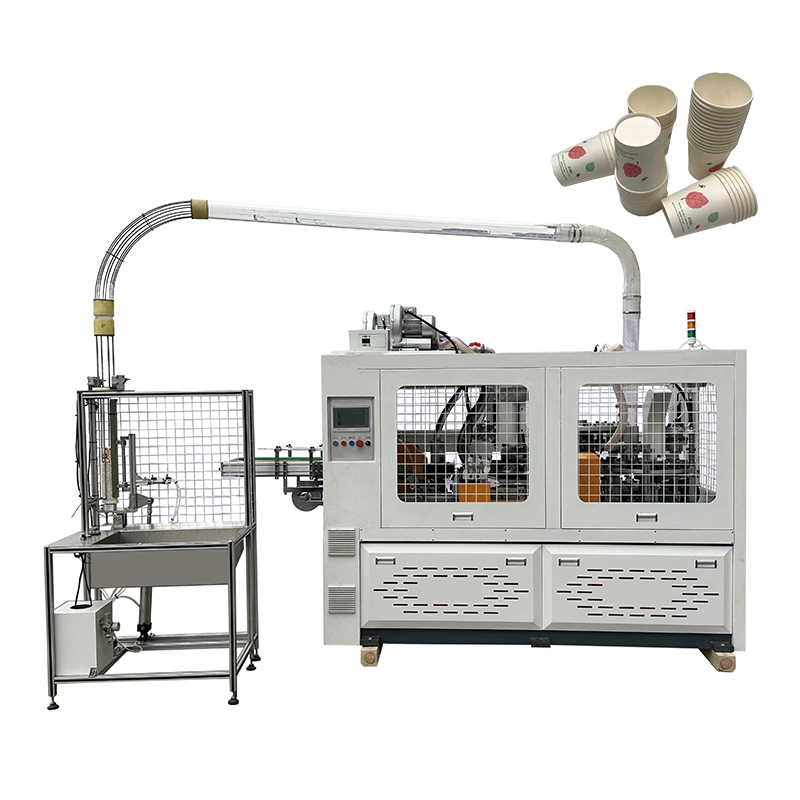

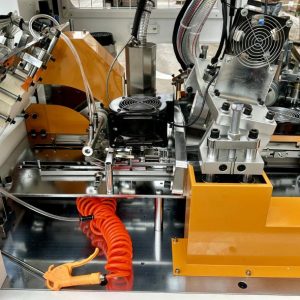

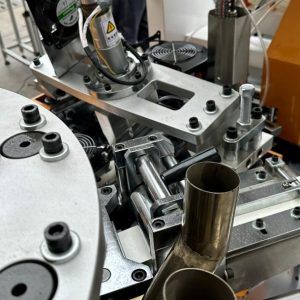

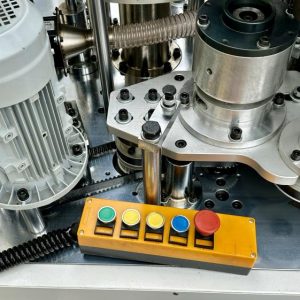

The HF-150A High-Speed Intelligent Servo Cup Machine features a desktop layout with isolated transmission components and molds. The transmission parts are positioned beneath the main plate while the mold assembly sits on top, facilitating easy cleaning and maintenance. The machine employs automatic spray lubrication, longitudinal shaft transmission structure, servo motor indexing mechanism, and gear transmission system to ensure overall stability and quality. Electrical components utilize PLC control with photoelectric tracking and servo feed technology. This production line achieves output rates of 130-160 cups per minute, suitable for manufacturing hot/cold cups ranging from 5 to 16 ounces.
| High-speed intelligent servo paper cup machine HF – 150A | |
| weight | 3200 kg |
| packing without carton | Length: 2900mm x Width: 1300mm x Height: 1950mm |
| power configuration | Three-phase 380V, 24KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| production capacity | 130-160 pcs/min |
| paper type | Single and double PE/PLA |
| paper gsm | 210-330g/㎡ |
| Cup size specification | (D1 cup opening) 50 – 90mm (D2 cup bottom) 40 – 65mm (H cup height) 50 – 138mm (h bottom depth) 5 – 12mm |
| detection device | （Optional） |
| Control panel | 7 inches |
| collection table | 1000 x 700 x 1600mm |
