1.The desktop layout separates components, making cleaning and maintenance more convenient.

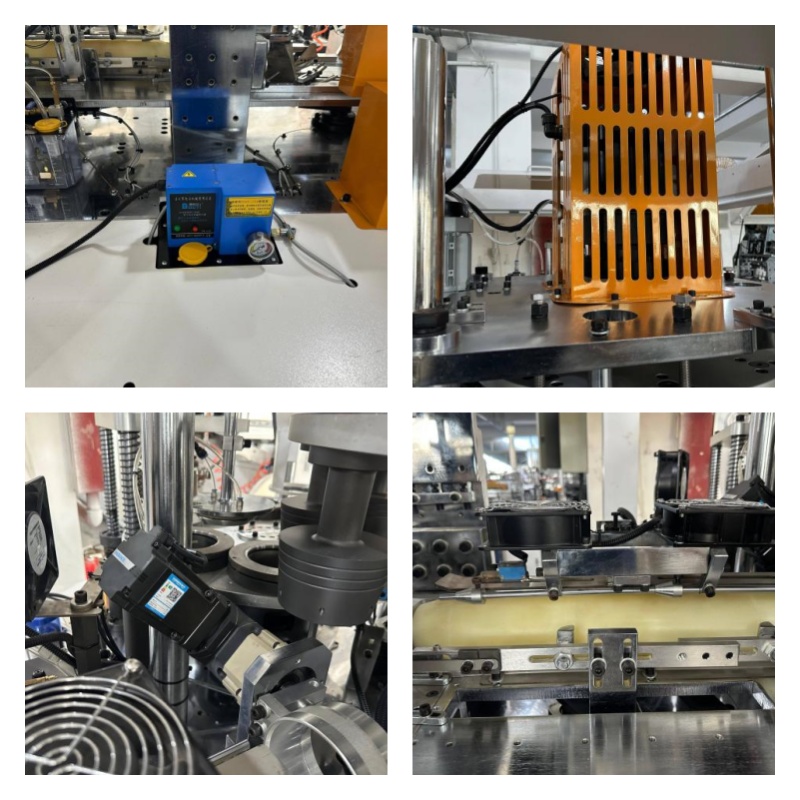

2.Multiple drives + spray lubrication ensures stable operation and quality maintenance.
3.Capacity: 130-150 pieces per batch, suitable for 12-36 ounces bowls.

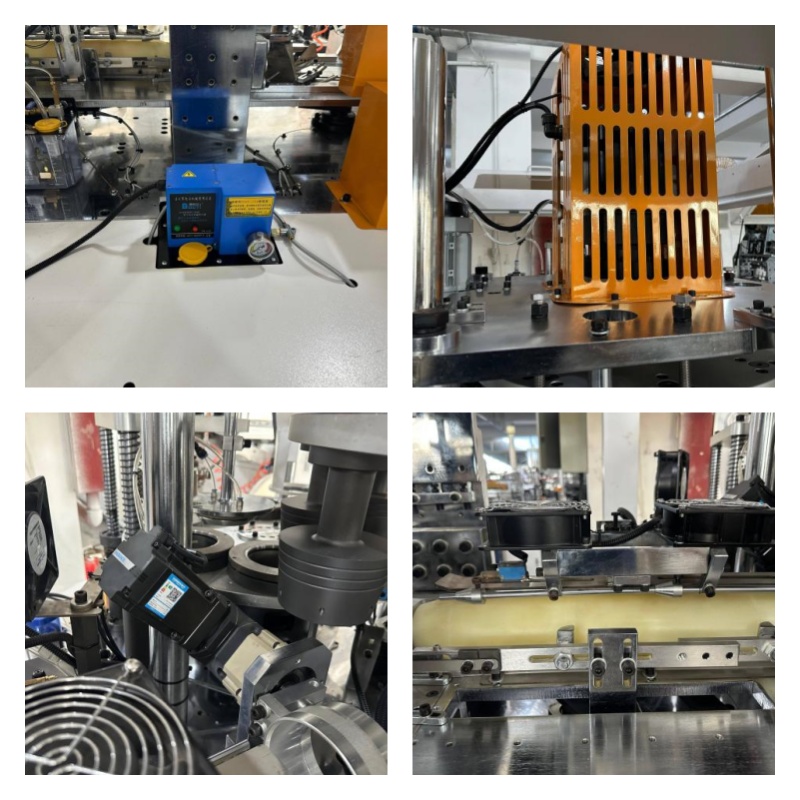

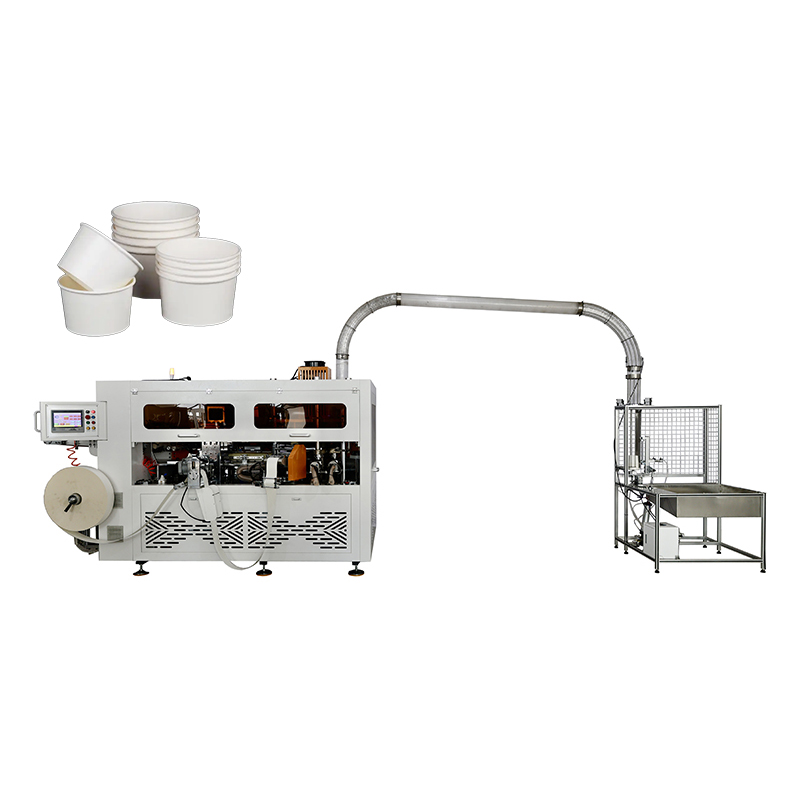

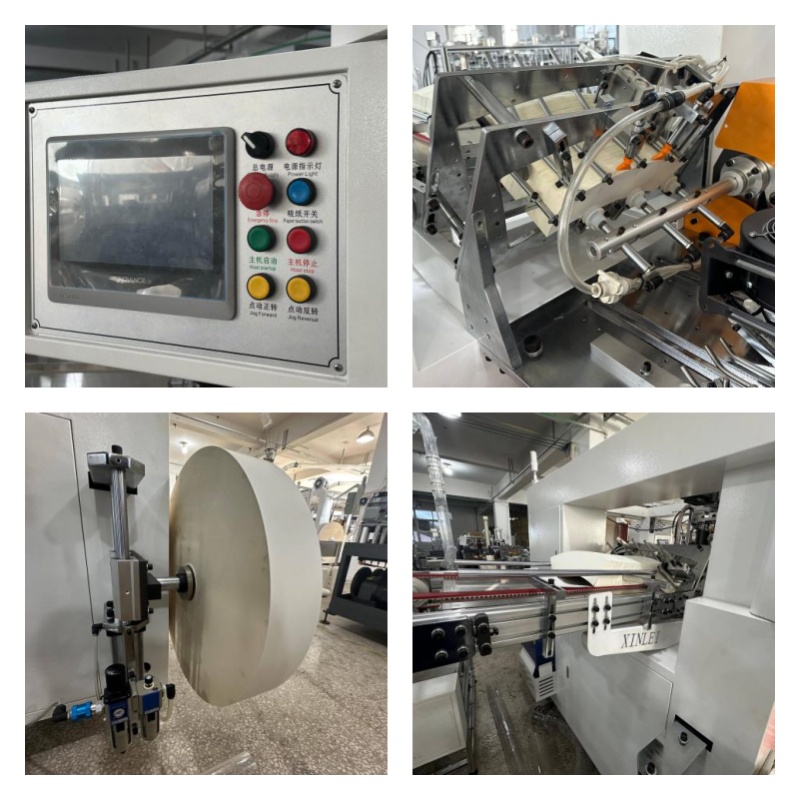

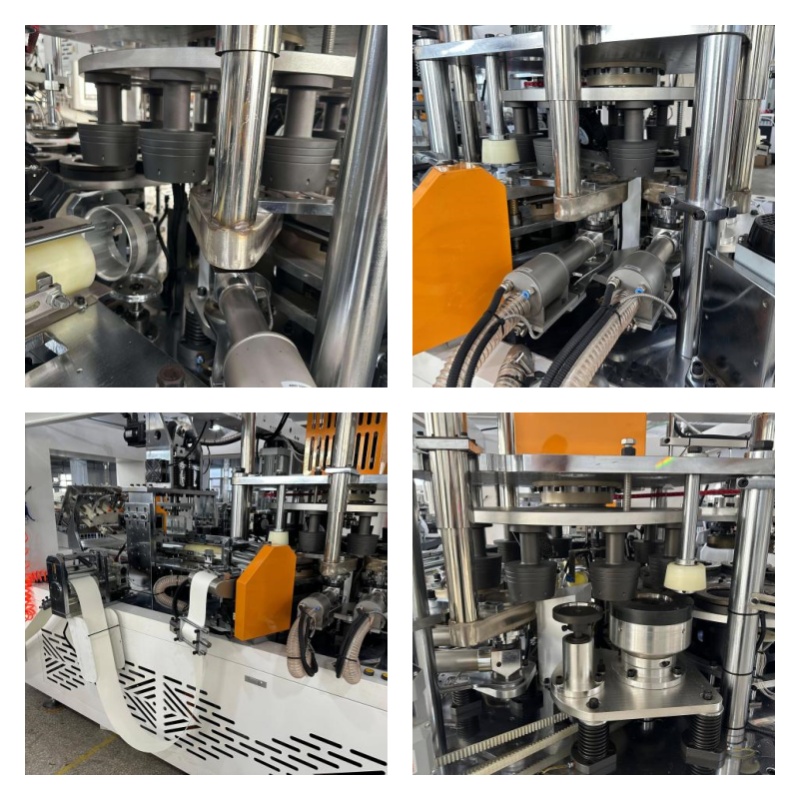

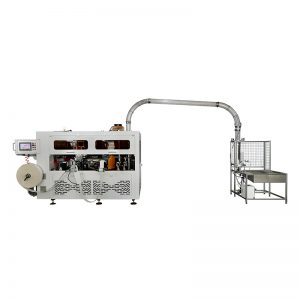

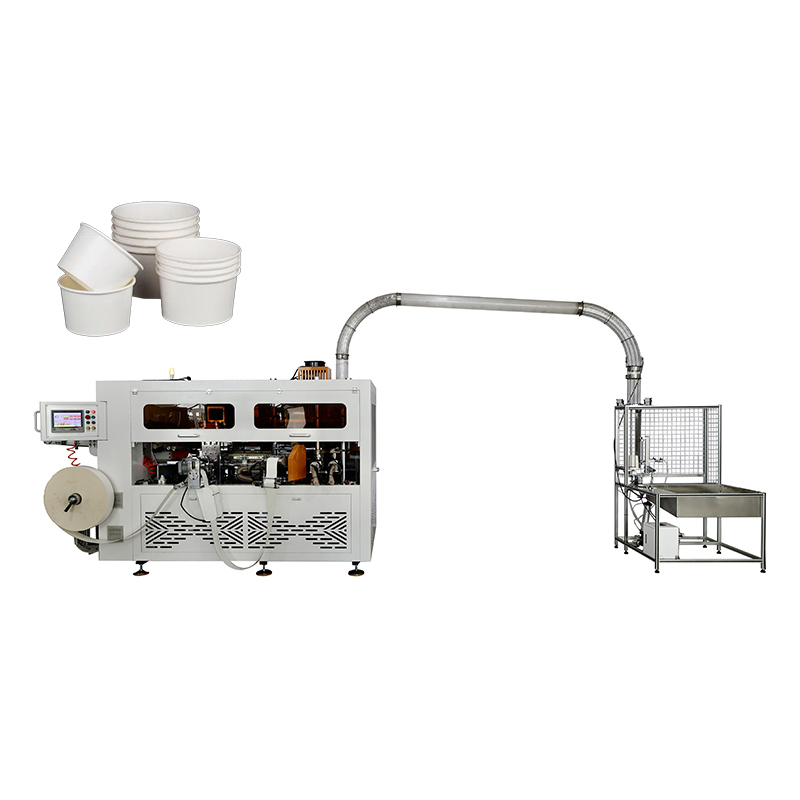

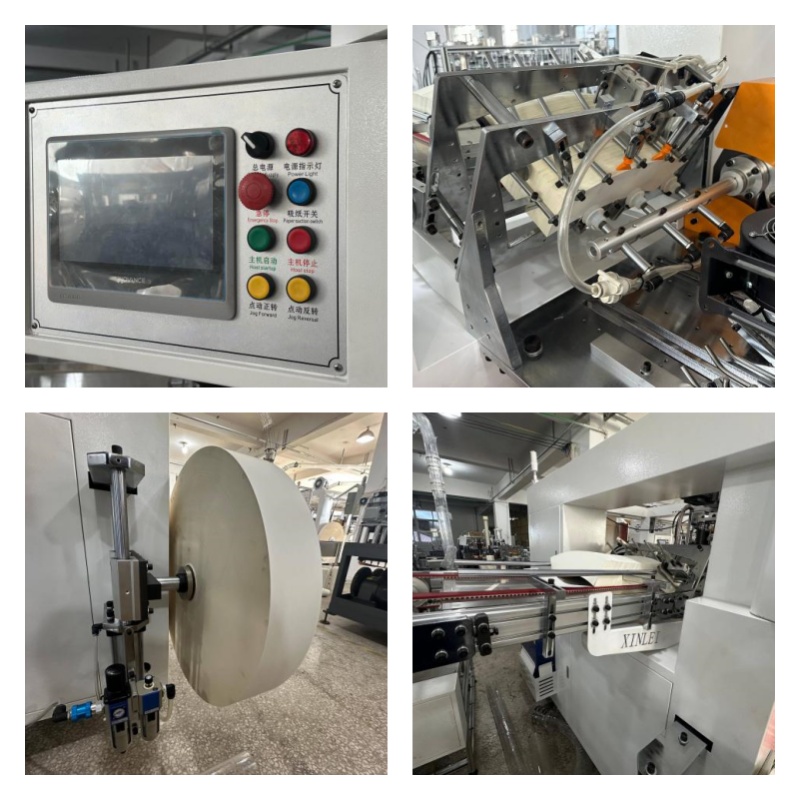

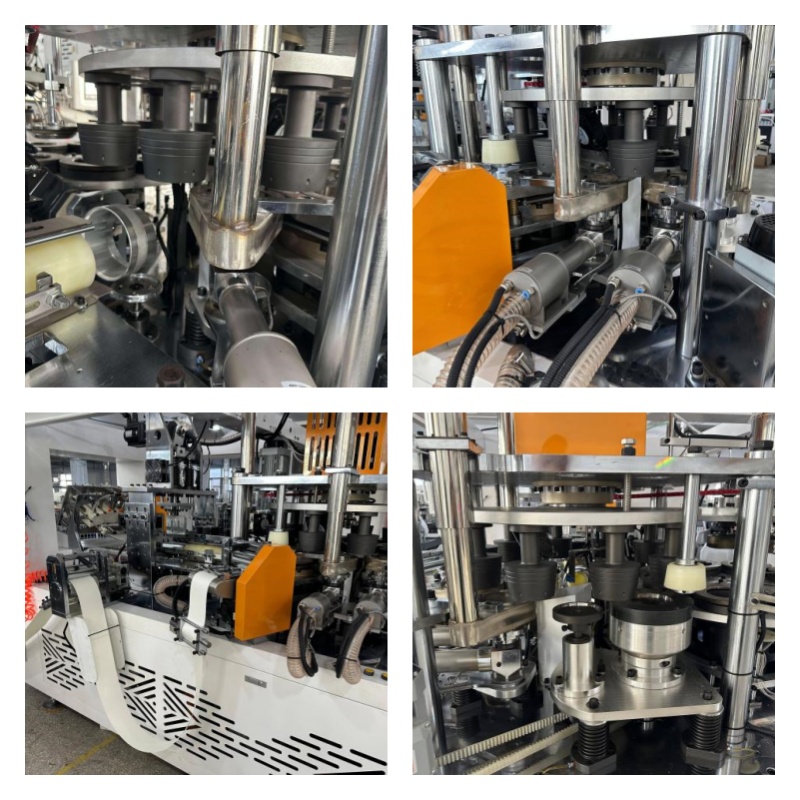

The HF-6000S smart paper bowl machine uses a desktop layout, isolating the transmission parts and molds. The transmission parts are under the table and the molds are on the table, and this layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, barrel cylindrical dividing mechanism and gear transmission, to ensure the stability and quality of the whole machine. For electrical components, use PLC, photoelectric tracking and servo feed. Such machines have a production capacity of up to 130-150 / min and are suitable for producing 12-36oz cold / hot bowls.
| High-speed Intelligent Paper Bowl Machine HF – 6000S | |
| weight | 4500 kg |
| packing without carton | Length: 3250mm x Width: 1900mm x Height: 1950mm |
| power configuration | Three-phase 380V, 35KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| production capacity | 130-150 pcs/min |
| paper type | Single and double PE/PLA |
| paper gsm | 210-330g/㎡ |
| Cup size specification | (D1 bowl opening) 100 – 150mm (D2 bowl bottom) 75 – 128mm (H bowl height) 60 – 135mm (h bottom depth) 5 – 10mm |
| detection device | （Optional） |
| Control panel | 10 inches |
| collection table | 1000 x 650 x 1600mm |
