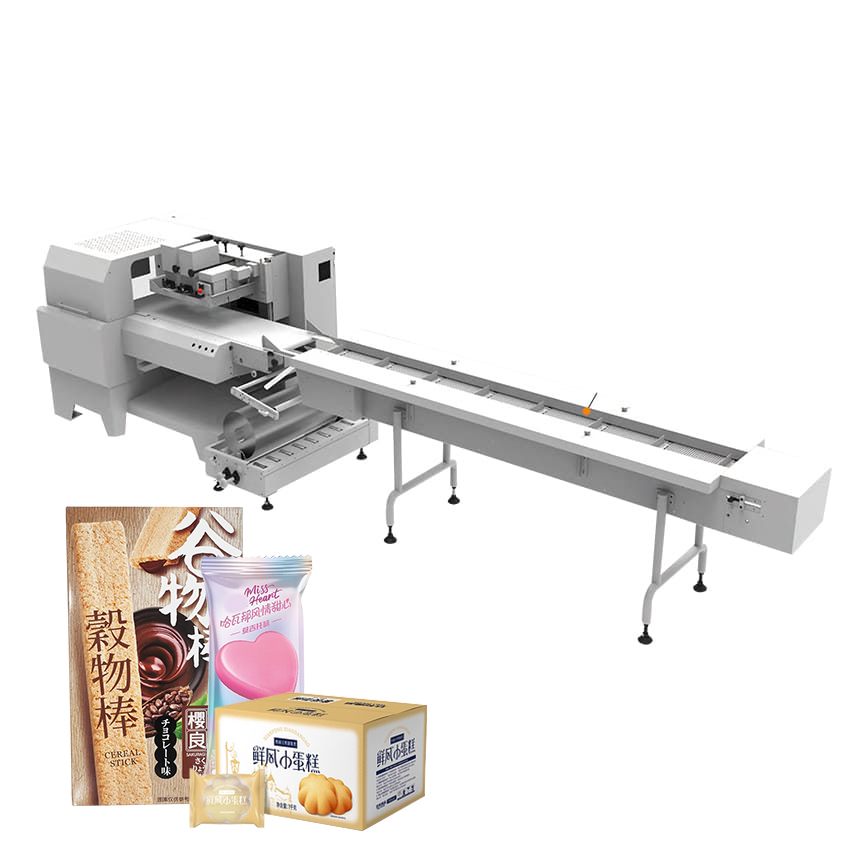

MC-801W INTELLIGENT PILLOW TYPE PACKING MACHINE

  • OEM
  • ODM

Packing speed:25~70 bags/min

Film size:900mm

Package length:150-600mm

Package width:350mm

General power:7.5Kw

WhatsApp / Phone: +8617739786040
Share
Applicable material

It is suitable for the packaging of large size products such as chocolate, flatbread, multi-packet combination of sachima, multi-packet combination of baked cake and so on.

Performance characteristics
  • The machine is controlled by seven servos.
  • The knife seal is reciprocating structure, and the sealing is smooth and beautiful
  • The machine packaging range is large, suitable for packaging all kinds of large specifications, large size products.
  • Ten inch touch screen display, easy operation, clear working state.
  • Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
  • Automatic adjustment of bag length, no manual setting.
  • The machine has higher precision and the sealing and cutting position is accurate.
  • Stop position, coding position can be arbitrarily set in the touch screen, just click, convenient and fast.
  • Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
Main parameter
Model MC-801W
Distance between centers 160mm
Packing speed 20-70 bag/min
Film size 900 mm
Package length 120-600mm
Package width 350mm
Package height 140mm
General power 7.5Kw
Packaging film type PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC.
Power supply 220v/50Hz
Machine size 5215 x 1560 x1537 mm
Net weight 1500 kg





Detail picture
