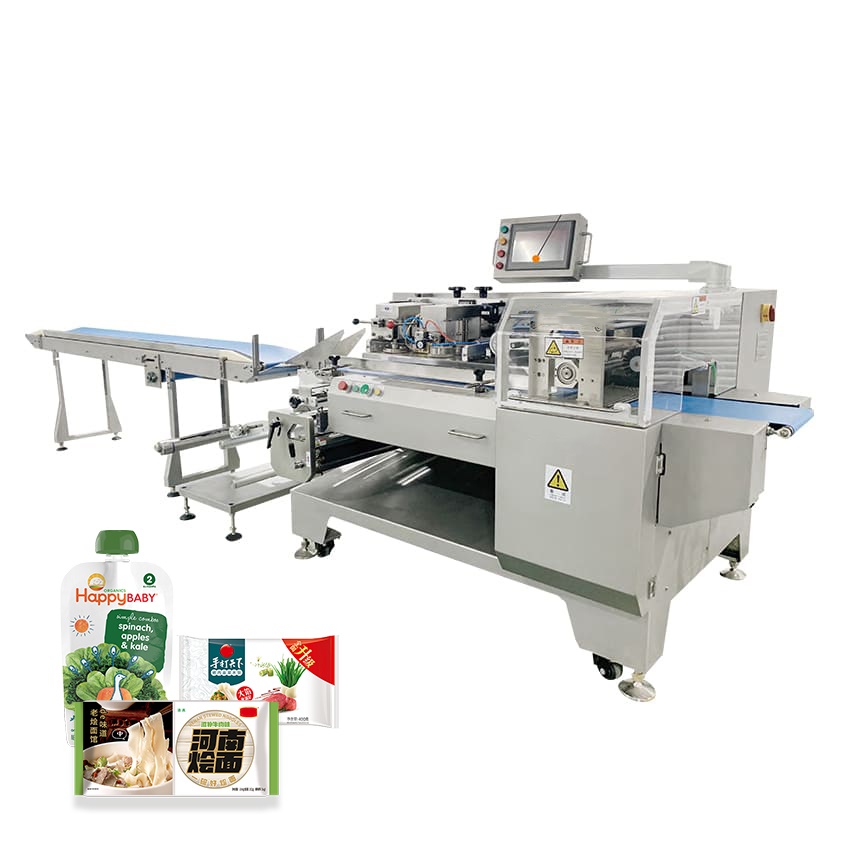

MC-601 INTELLIGENT PILLOW TYPE PACKING MACHINE

  • OEM
  • ODM

Packing speed:25~120 bags/min

Film size:600mm

Package length:120-600mm

Package width:250mm

General power:8KW

WhatsApp / Phone: +8617739786040
Share
Applicable material

It is suitable for the packaging of baked goods, pastry, quick-frozen products, multi-small packages and other large specifications

Performance characteristics
  • The machine is controlled by eight servos.
  • The machine packaging range is large, suitable for packaging all kinds of large specifications, large size products.
  • Ten inch touch screen display, easy operation, clear working state.
  • Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
  • Automatic adjustment of bag length, no manual setting.
  • The machine has higher precision and the sealing and cutting position is accurate.
  • Stop position, coding position can be arbitrarily set in the touch screen, just click, convenient and fast.
  • Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
Main parameter
Model MC-601
Distance between centers 150/192mm
Packing speed 25-120 bag/min
Film size 600 mm
Package length 120-600mm
Package width 250mm
Package height 120mm
General power 8Kw
Packaging film type PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC.
Power supply 220v/50Hz
Machine size 5055 x 1425 x1485 mm
Net weight 900 kg

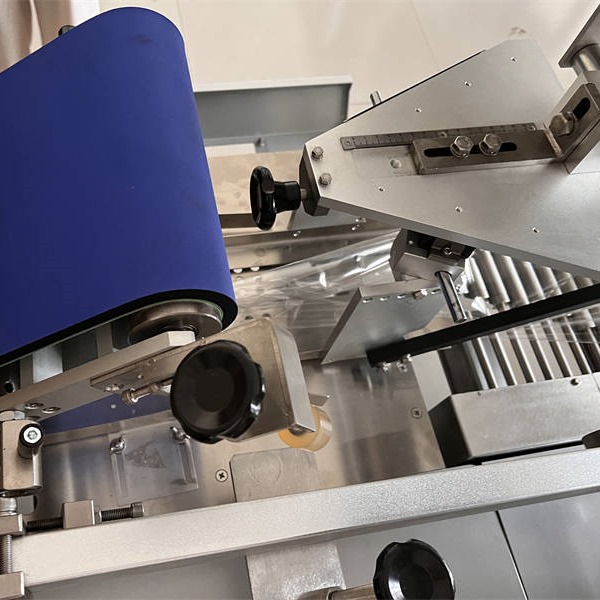

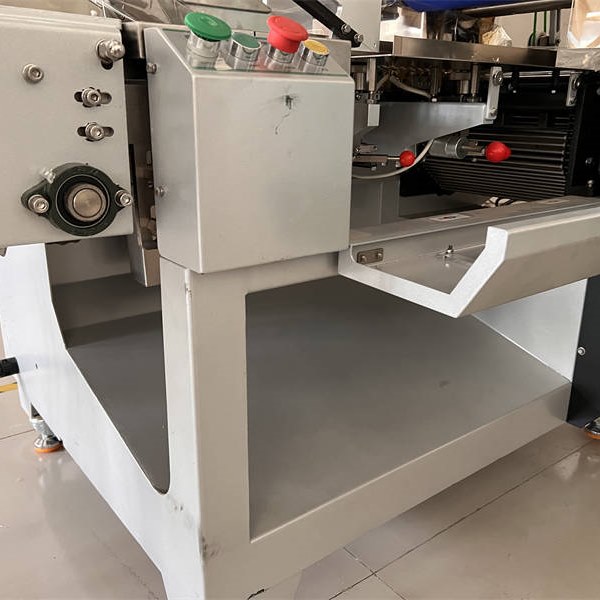

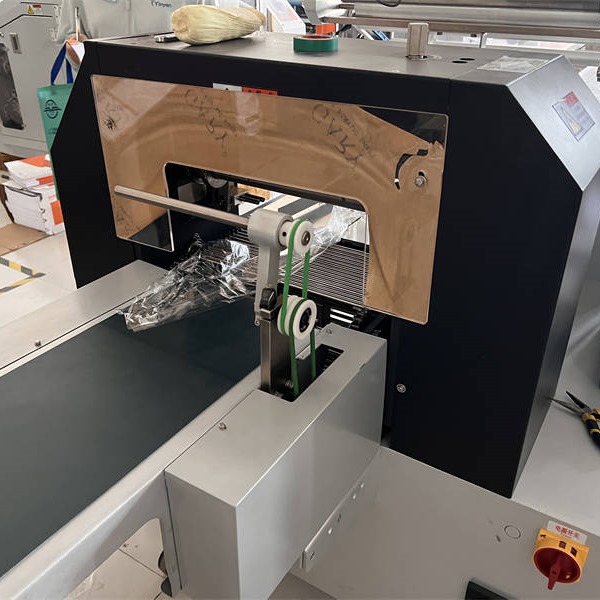

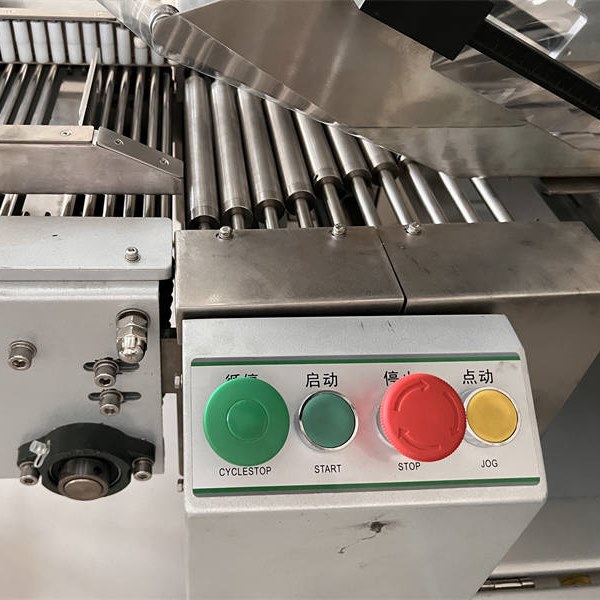

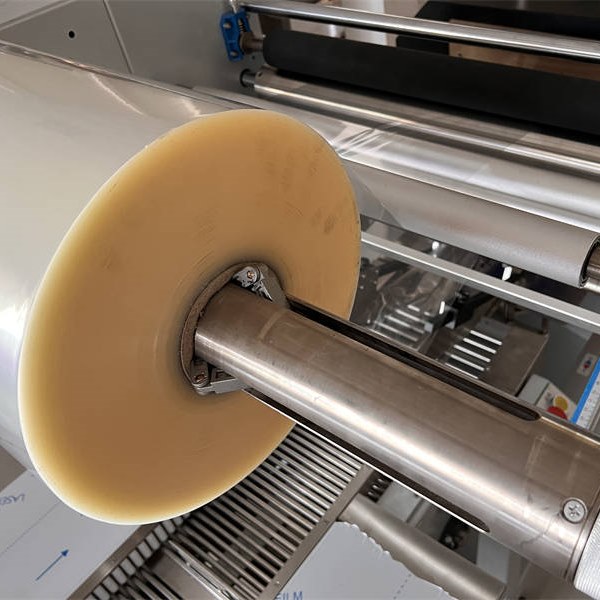

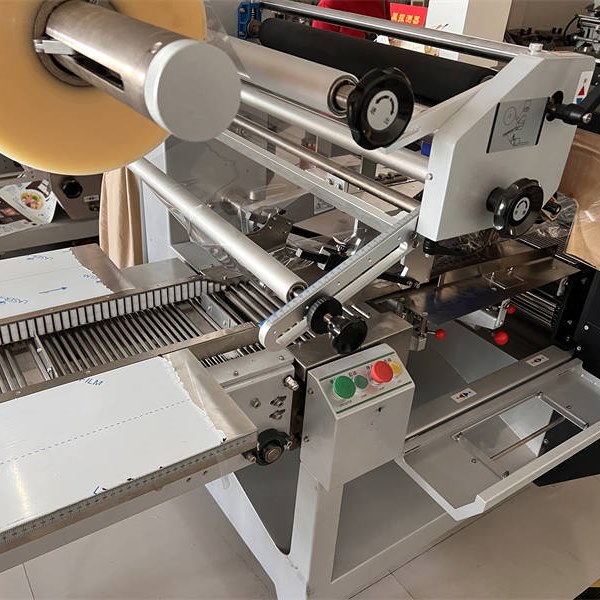

Detail picture
