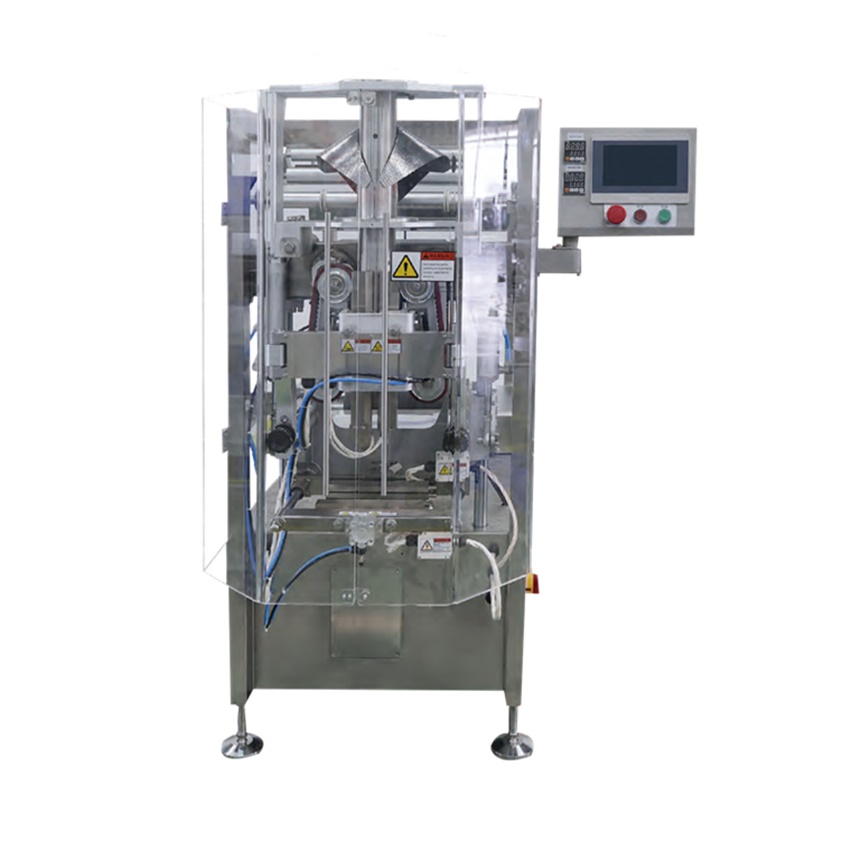

MC-200H RECIPROCATING PACKAGING MACHINE

Packing speed：20-120 bag/min

Film size：200-420 mm

Package length：50-275mm

Package width：90-200mm

General power：4.9KW

Email: [email protected]

WhatsApp / Phone: +8617739786040

Scope of application Performance advantage Technical parameter Detail picture

Scope of application

Performance advantage

The machine is controlled by three servos.
Seven-inch touch screen display, easy operation and clear working status.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
Reduce the labor intensity of the operator, effectively improve production efficiency.
Machine design conforms to GMP standard, with CE certification.

Technical parameter

Model	MC-200H
Packing speed	20-120 bag/min
Film size	200-420 mm
Package length	50-275mm
Package width	90-200 mm
General power	4.9KW
Packaging film type	PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC.
Power supply	220v/50Hz
Machine size	1650 x 1030 x1220 mm
Net weight	240 kg

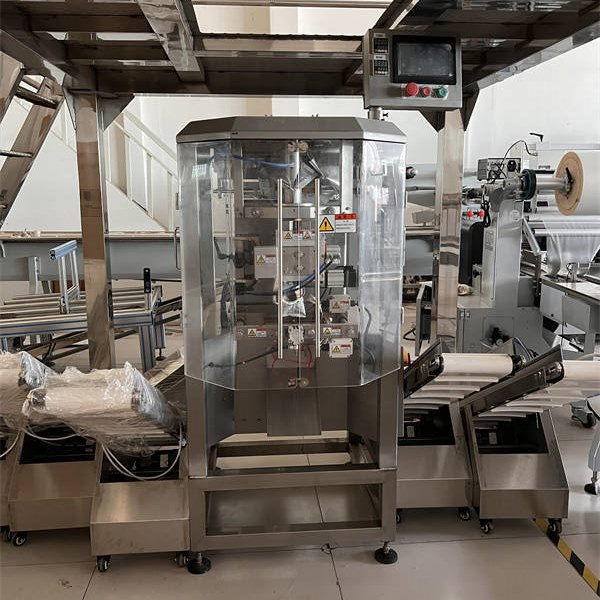

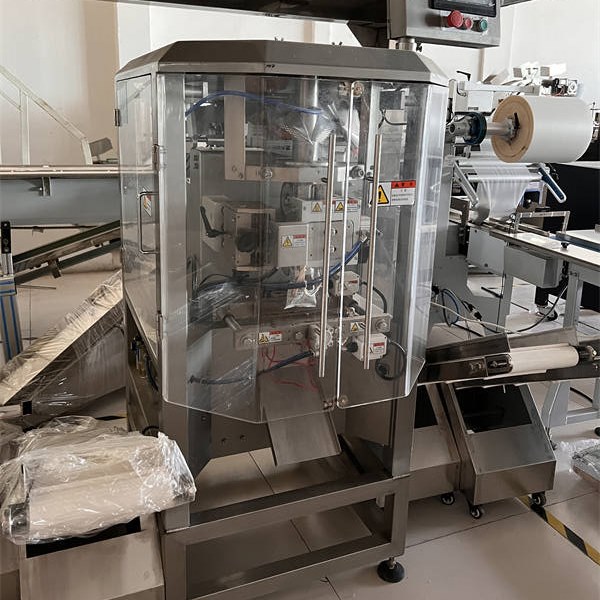

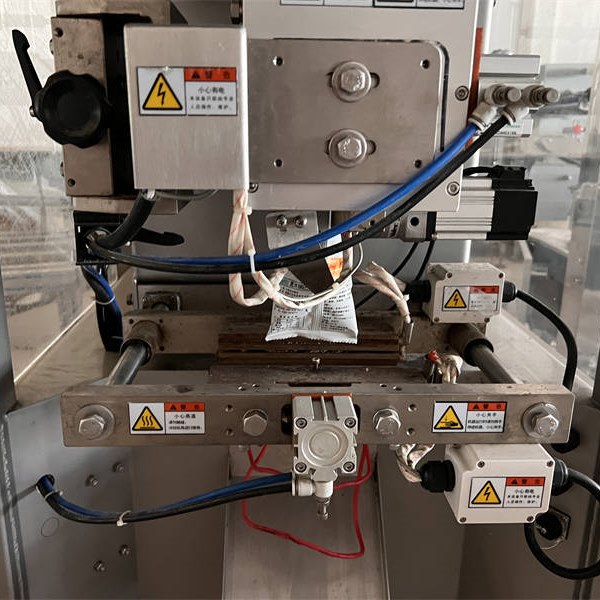

Detail picture
