1.The desktop layout separates the transmission and the mold, making cleaning and maintenance more convenient.
2.Precise transmission combined with automatic lubrication ensures stable operation and reliable quality.
3.PLC intelligent control enables efficient production at a rate of 100-120 units per minute.

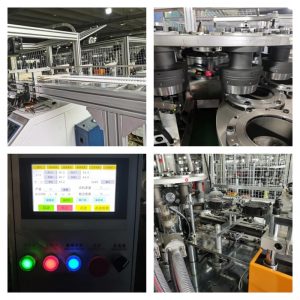

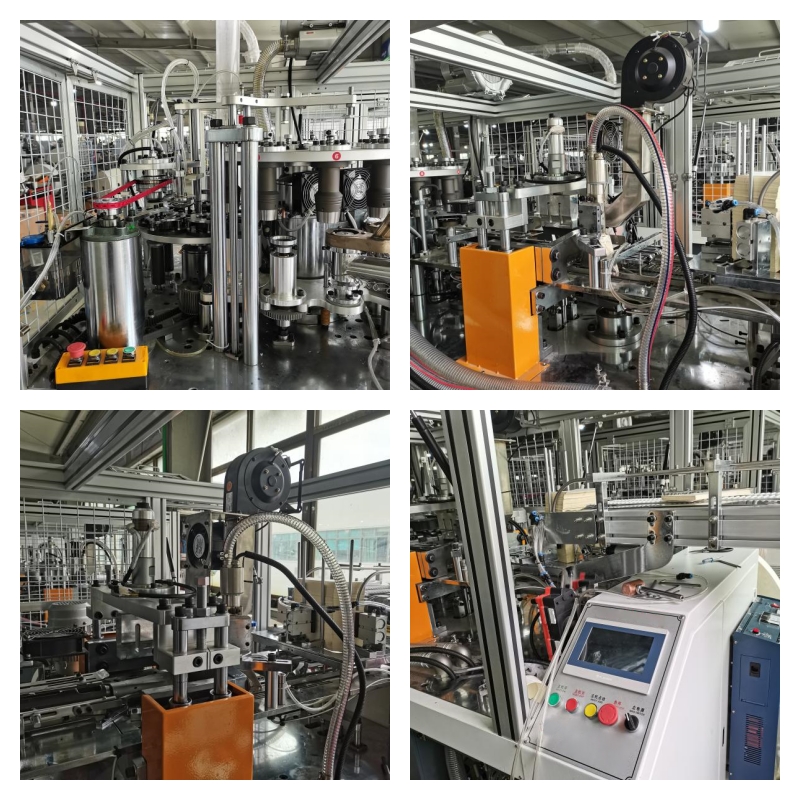

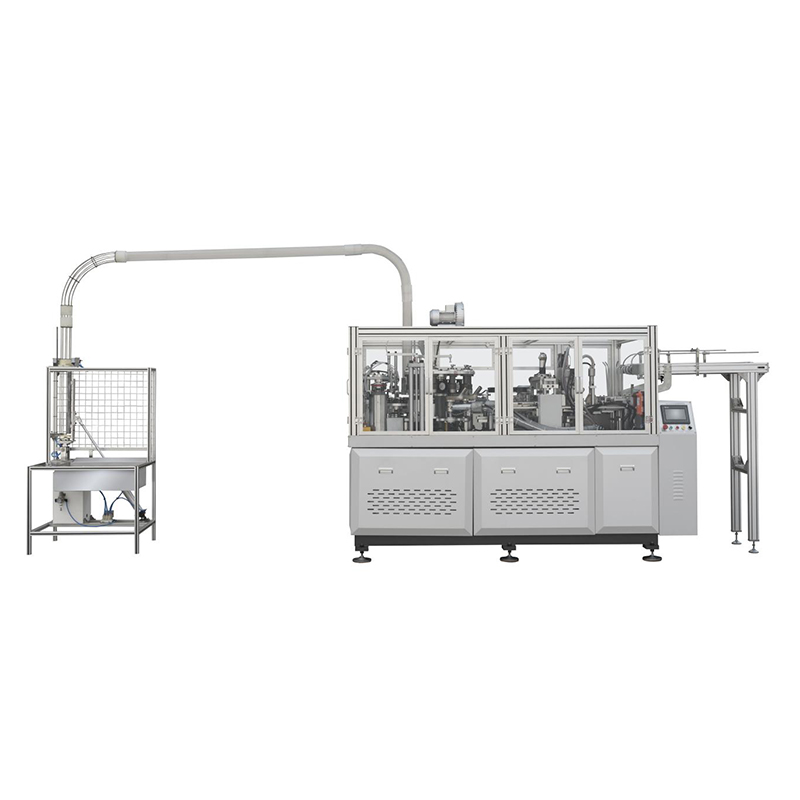

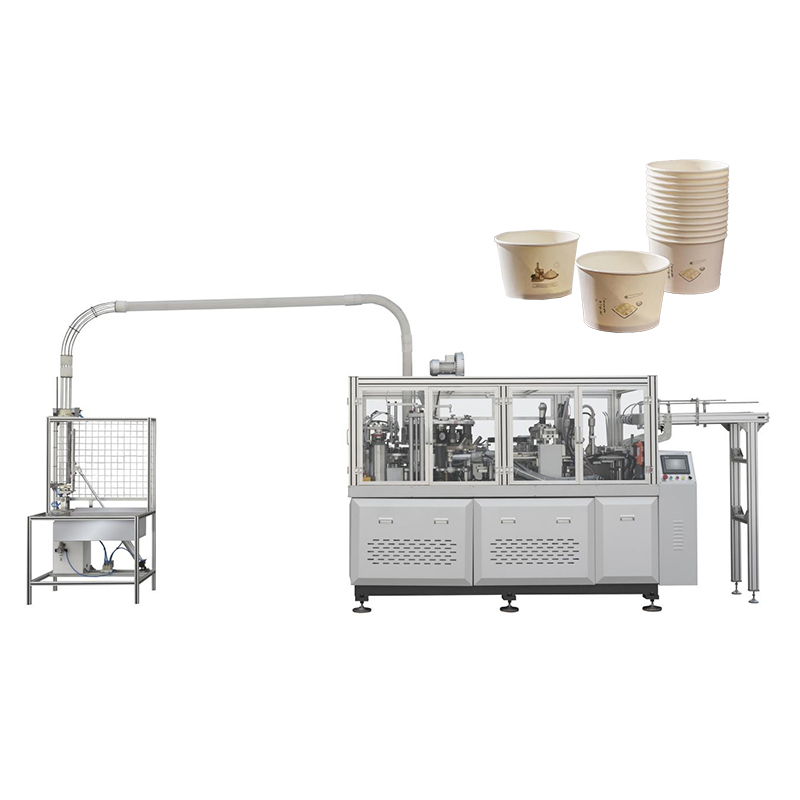

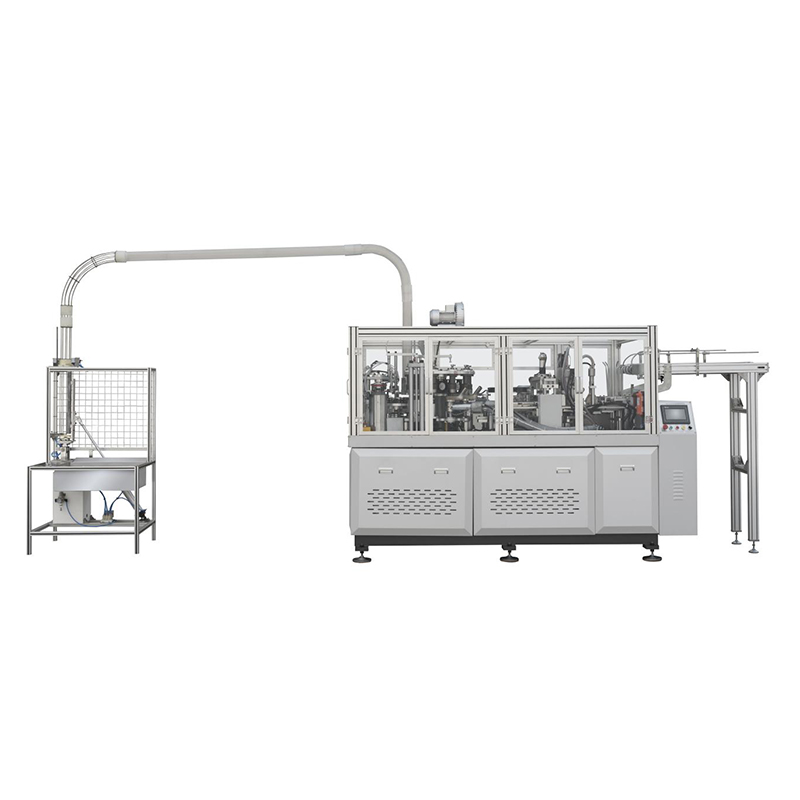

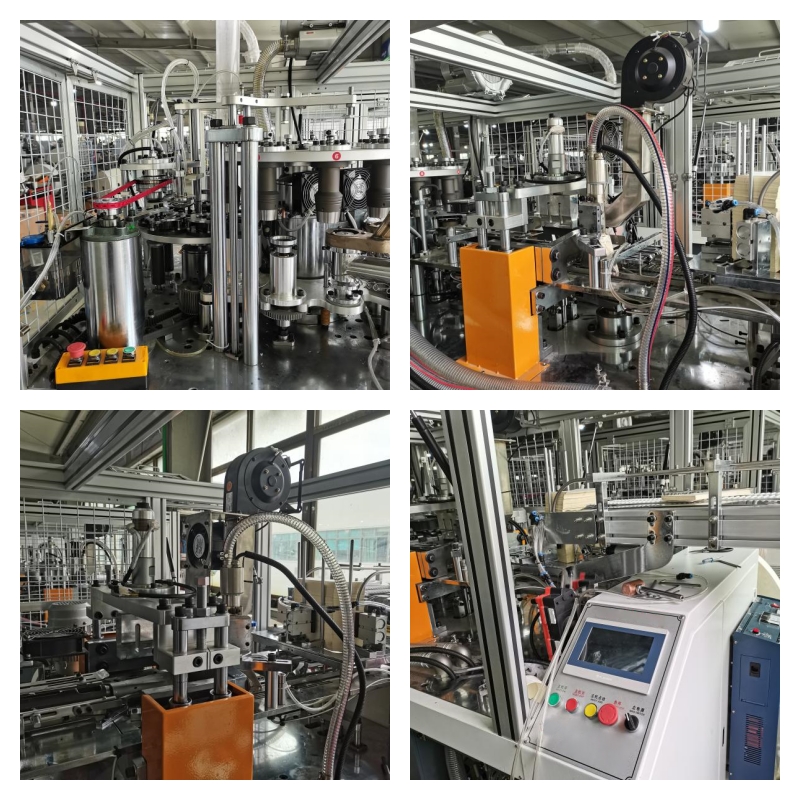

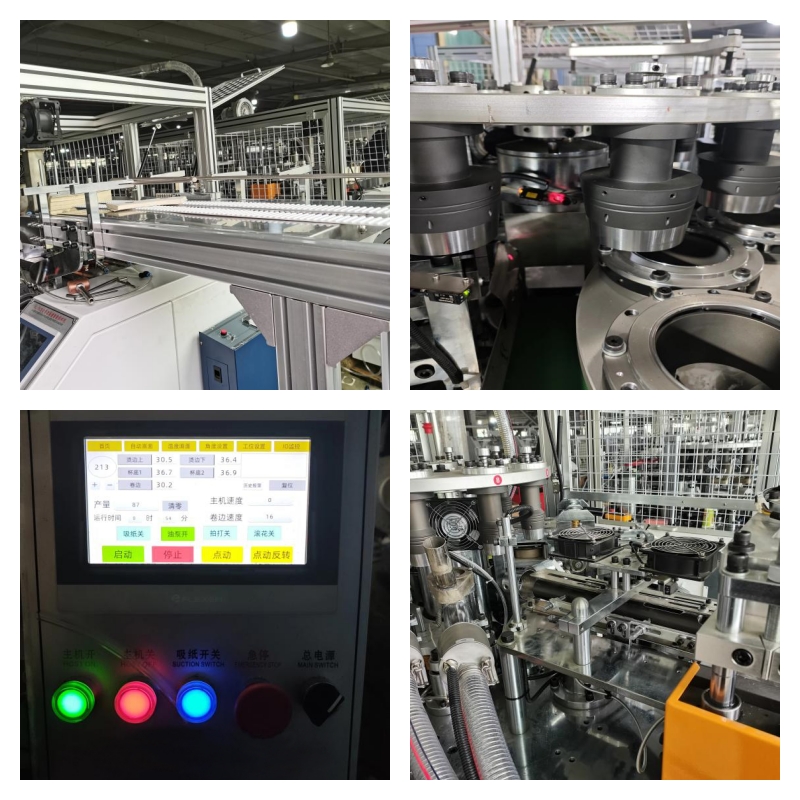

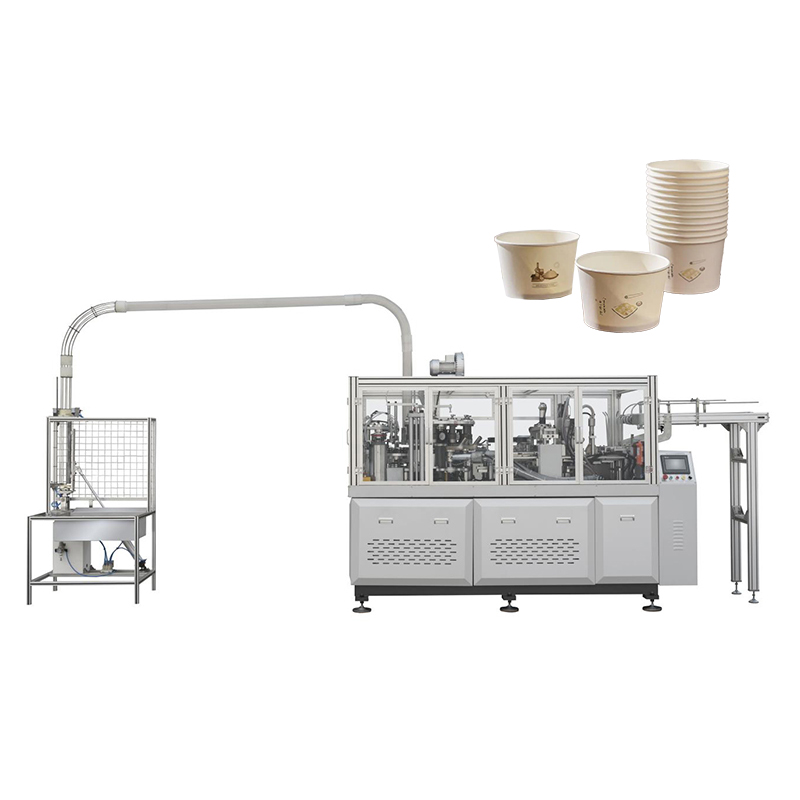

High-speed intelligent paper cup machine HF – 900S, an intelligent paper bowl machine, adopts a desktop layout, isolating the transmission components and molds. The transmission components are located under the table, while the molds are on the table. This layout facilitates cleaning and maintenance. The machine uses automatic spray lubrication, a longitudinal shaft transmission structure, a barrel-shaped cylindrical indexing mechanism and gear transmission to ensure the stability and quality of the entire machine. For electrical components, PLC, photoelectric tracking and servo feed are used to control the operation. The production capacity of this type of machine can reach 100-120 / min, suitable for producing 16-32 ounces of cold/hot cups.
| machine model | HF- 900S |
| weight | 4500 kg |
| packing without carton | Length: 3200mm x Width: 1100mm x Height: 2000mm |
| power configuration | Three-phase 380V, 25KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| production capacity | 120-150 pcs/min |
| paper type | Single and double PE/PLA |
| paper gsm | 210-330g/㎡ |
| Cup size specification | (D1 bowl opening) 90 – 150mm (D2 bowl bottom) 90 – 128mm (H bowl height) 60 – 125mm (h bottom depth) 5 – 12mm |
| detection device | （Optional） |
| Control panel | 7 inches |
| collection table | 1000 x 650 x 1600mm |
