1.The desktop layout separates the transmission molds, making cleaning and maintenance more convenient.
2.The servo transmission structure is stable, with an output capacity of 80-100 pieces per minute.

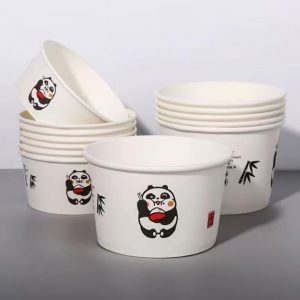

3.The PLC intelligent control is compatible with the production of 36-55 ounce salad bowls.

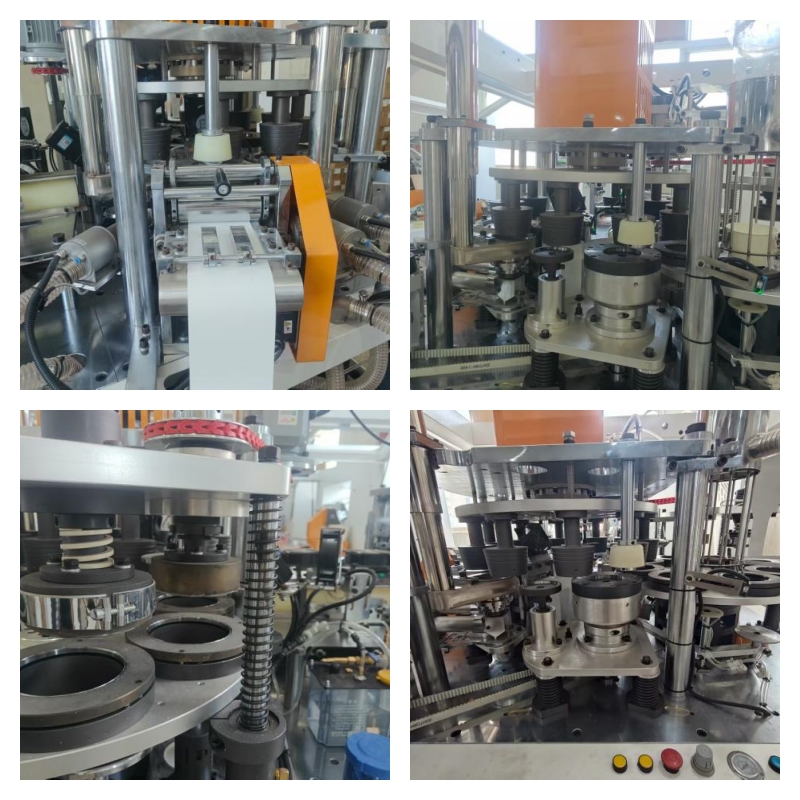

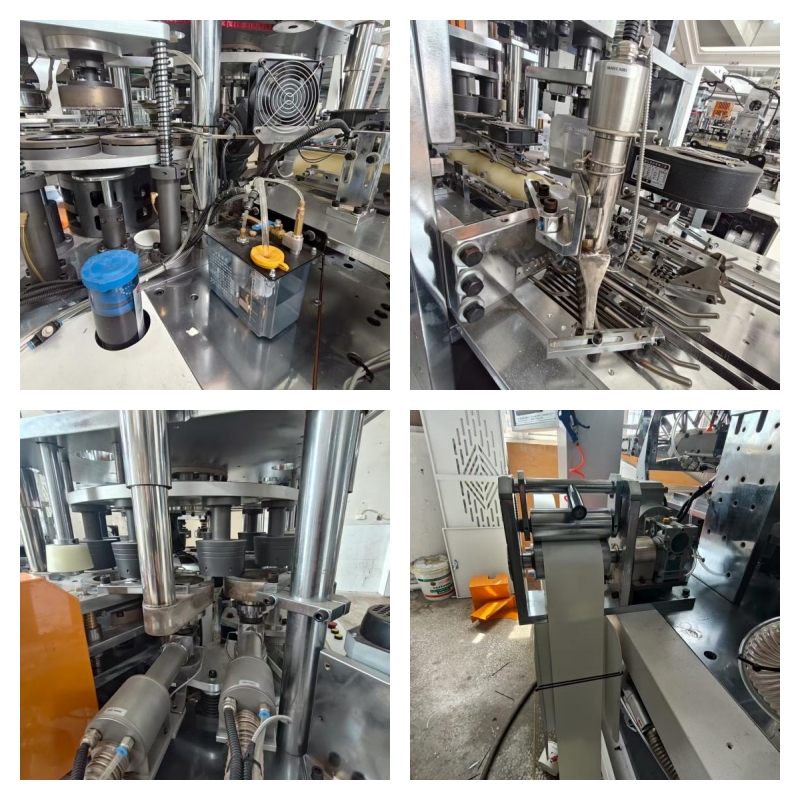

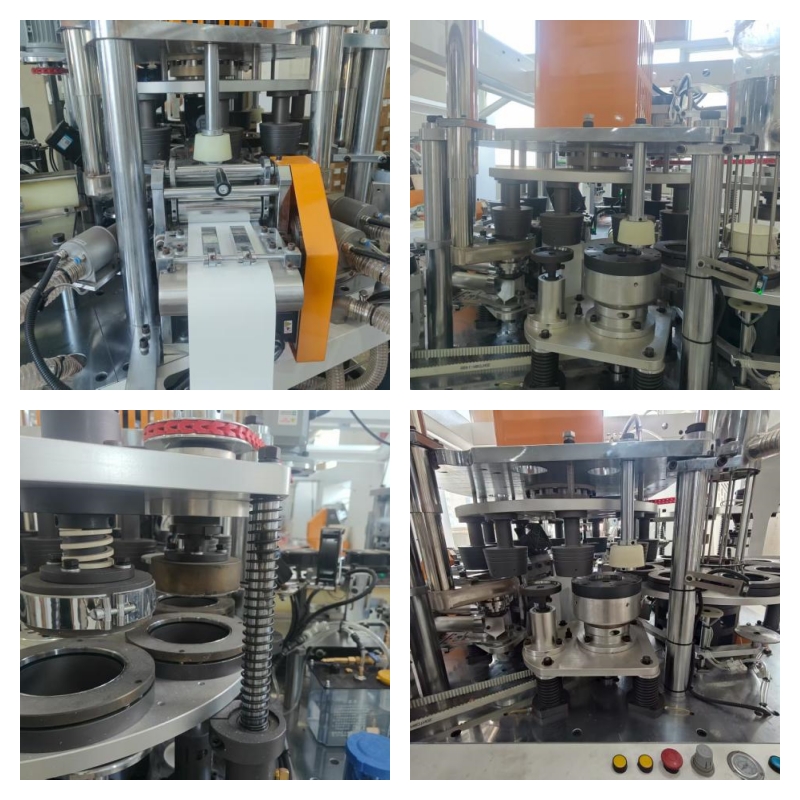

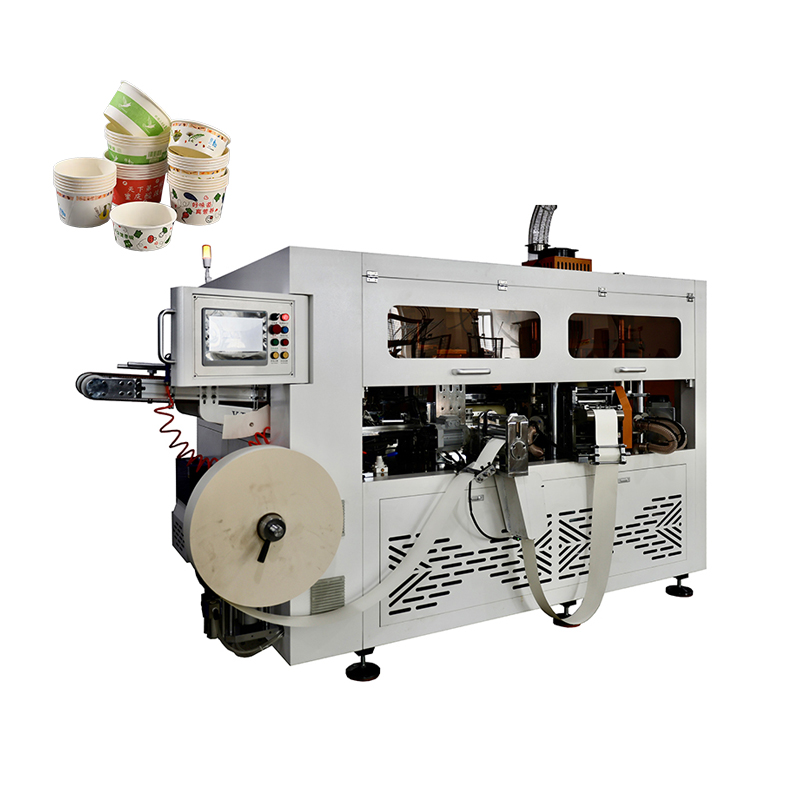

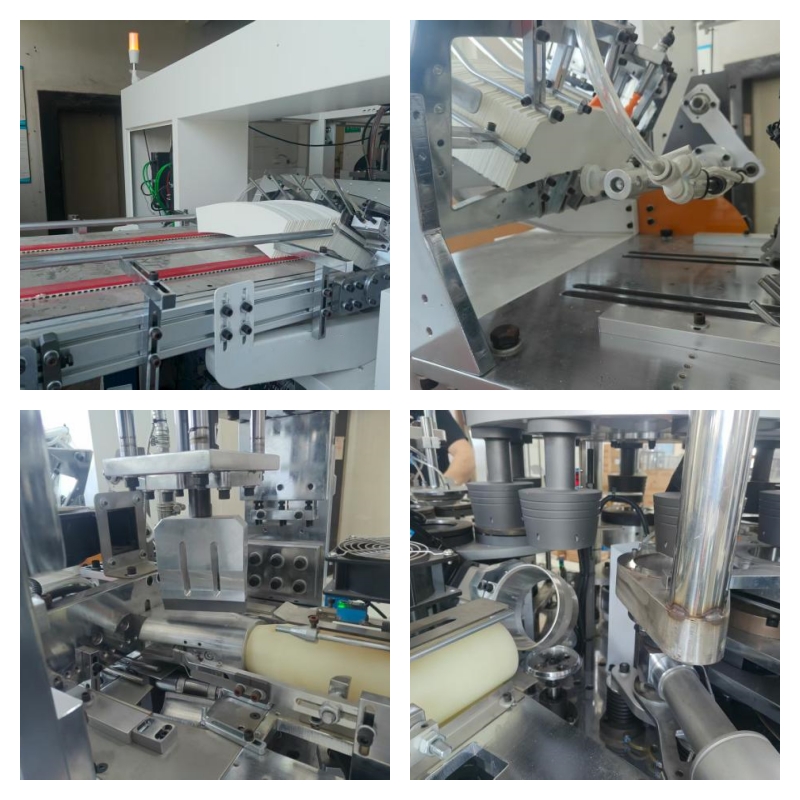

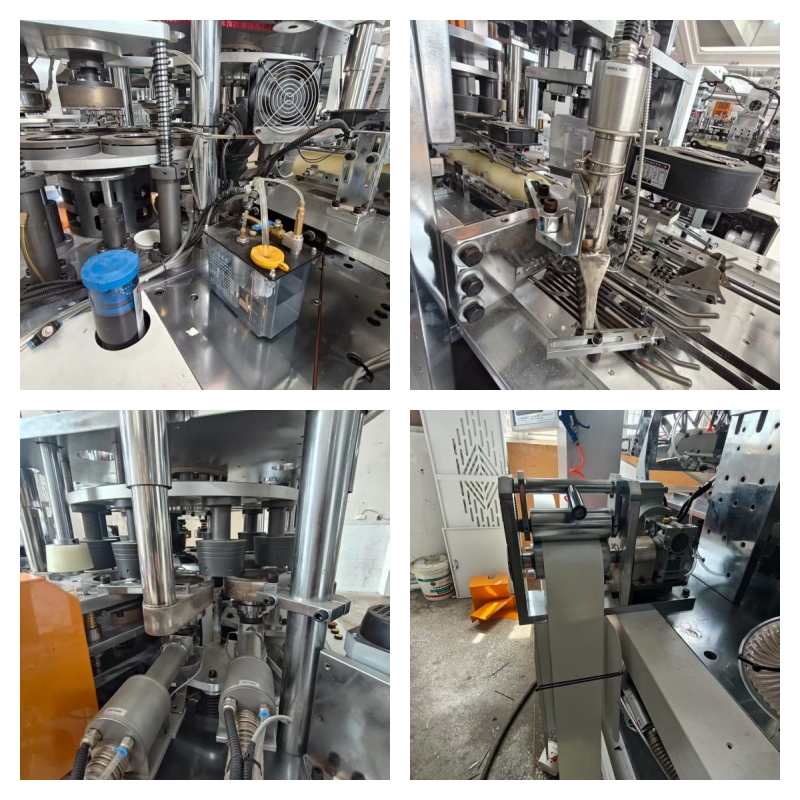

The HF-6000S smart paper bowl machine uses a desktop layout, isolating the transmission parts and molds. The transmission parts are under the table and the molds are on the table, and this layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, barrel cylindrical dividing mechanism and gear transmission, to ensure the stability and quality of the whole machine. For electrical components, use PLC, photoelectric tracking and servo feed. Such machines have a production capacity of up to 130-150 / min and are suitable for producing 12-36oz cold / hot bowls.

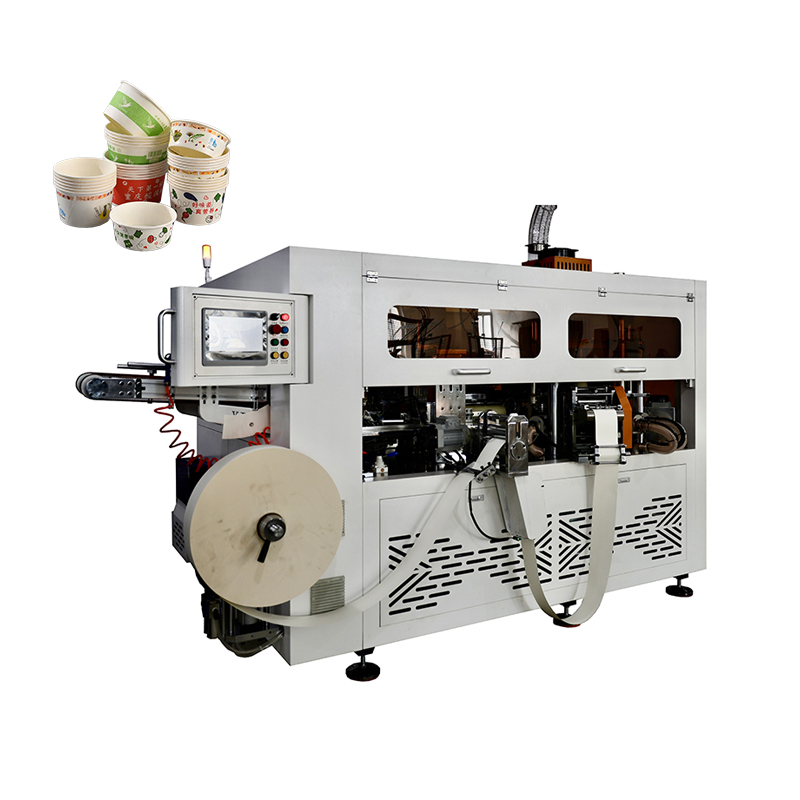

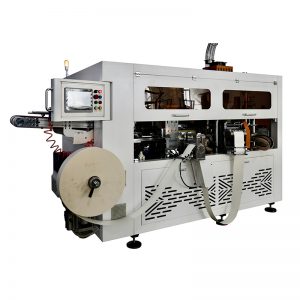

| High-speed Intelligent Paper Bowl Machine HF – 8000S | |
| weight | 5500 kg |
| packing without carton | Length: 3300mm x Width: 2000mm x Height: 1950mm |
| power configuration | Three-phase 380V, 35KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| production capacity | 80-100 pcs/min |
| paper type | Single and double PE/PLA (as informed by the customer) |
| paper gsm | 210-330g/㎡ |
| Cup size specification | (D1 bowl opening) 150 – 185mm (D2 bowl bottom) 125 – 165mm (H bowl height) 55 – 80mm (h bottom depth) 5 – 10mm |
| detection device | （Optional） |
| Control panel | 10 inches |
| collection table | 1000 x 650 x 1600mm |
