1.The desktop layout separates the transmission molds, making cleaning and maintenance more convenient.
2.The full servo transmission is more stable and the operation is simple and easy to master.
3.PLC intelligent control, with an output capacity of 150-180 pieces per minute.

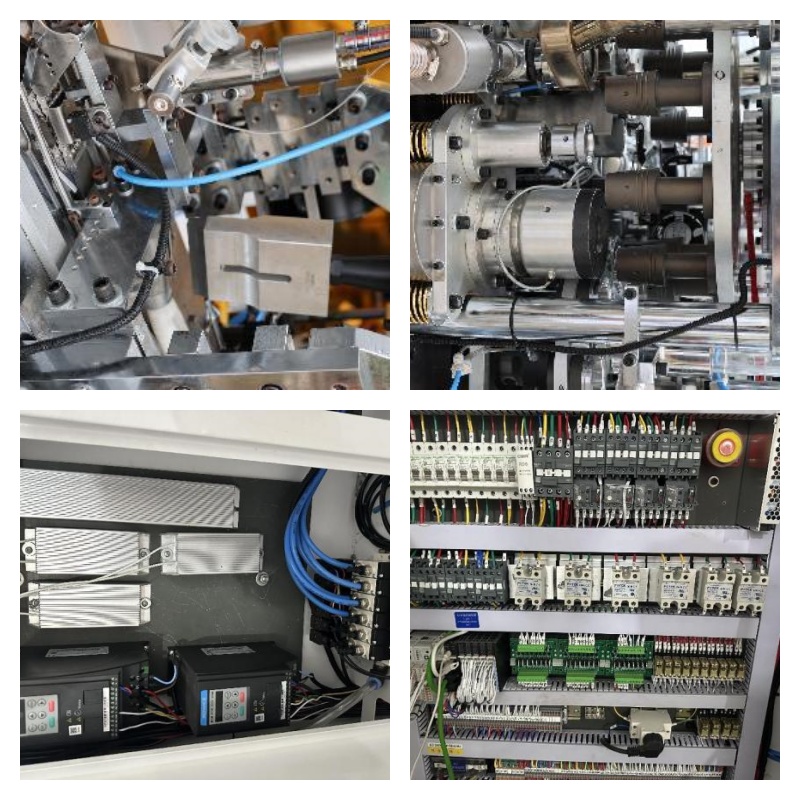

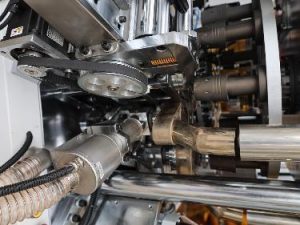

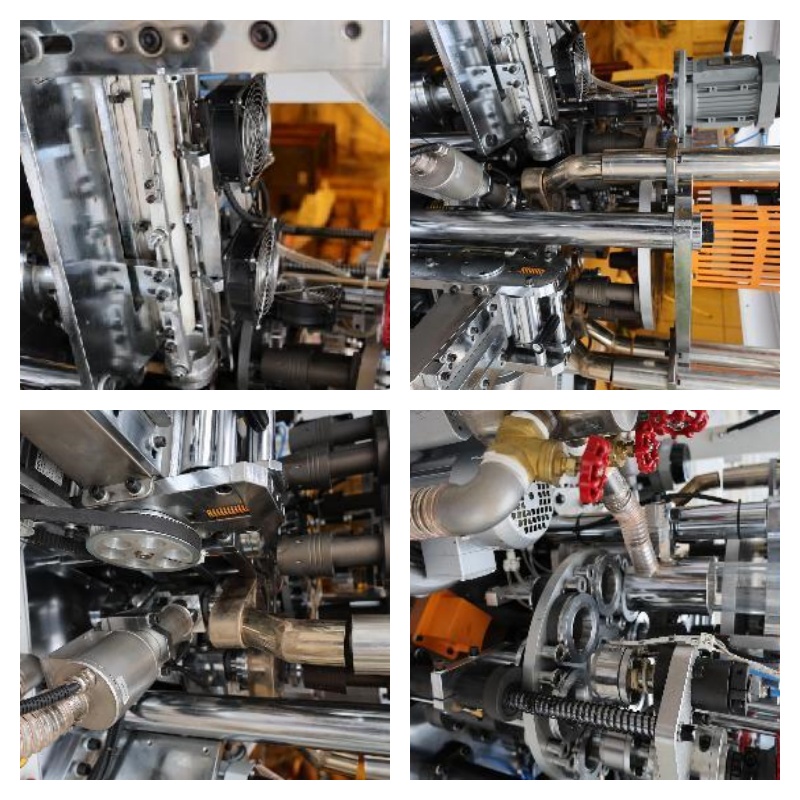

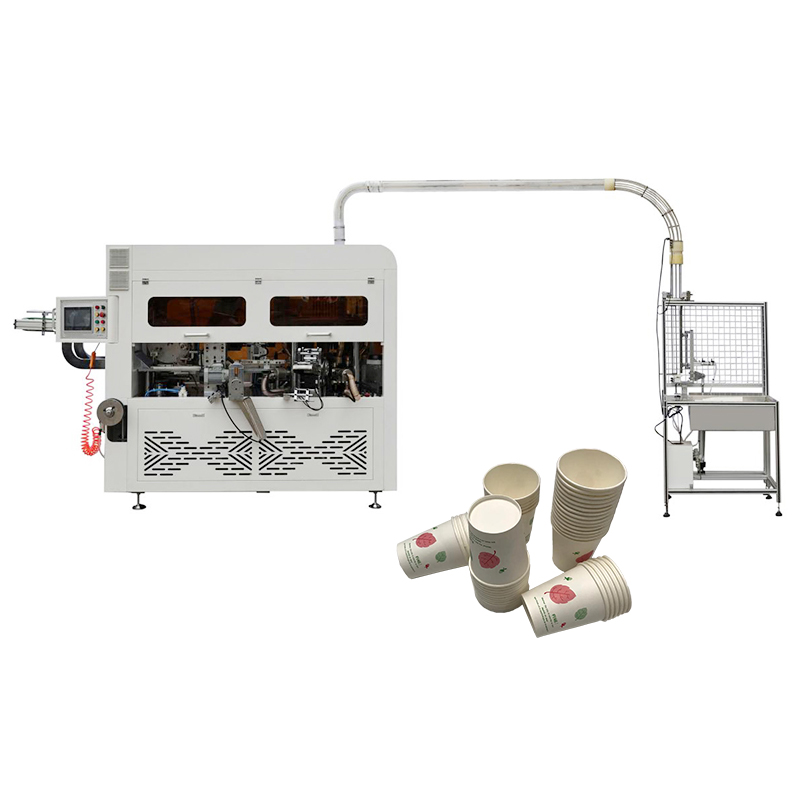

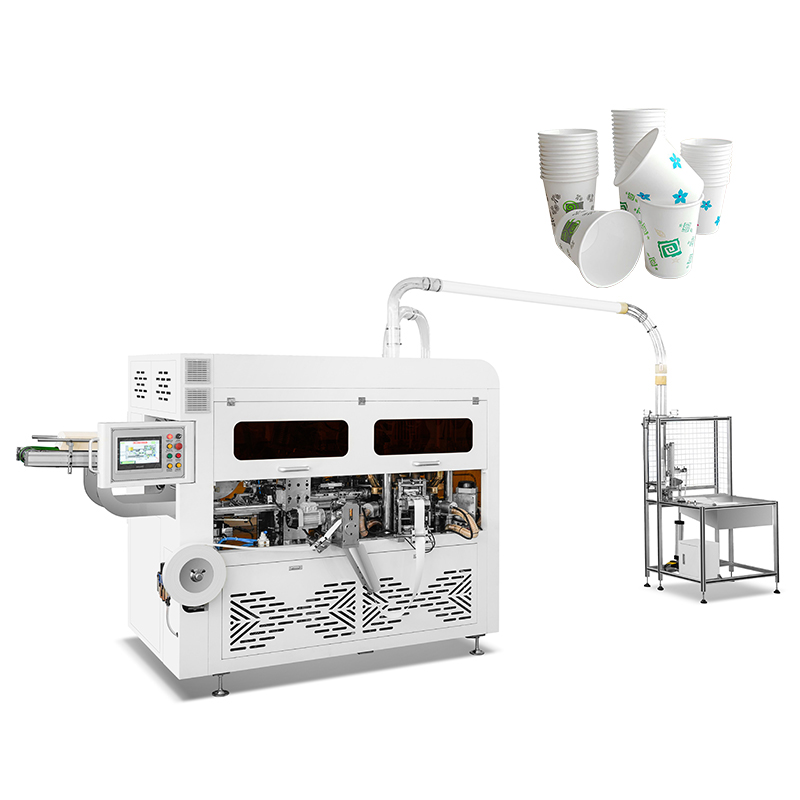

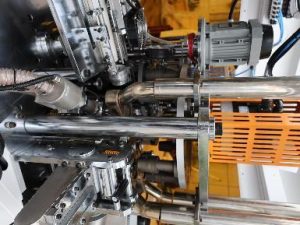

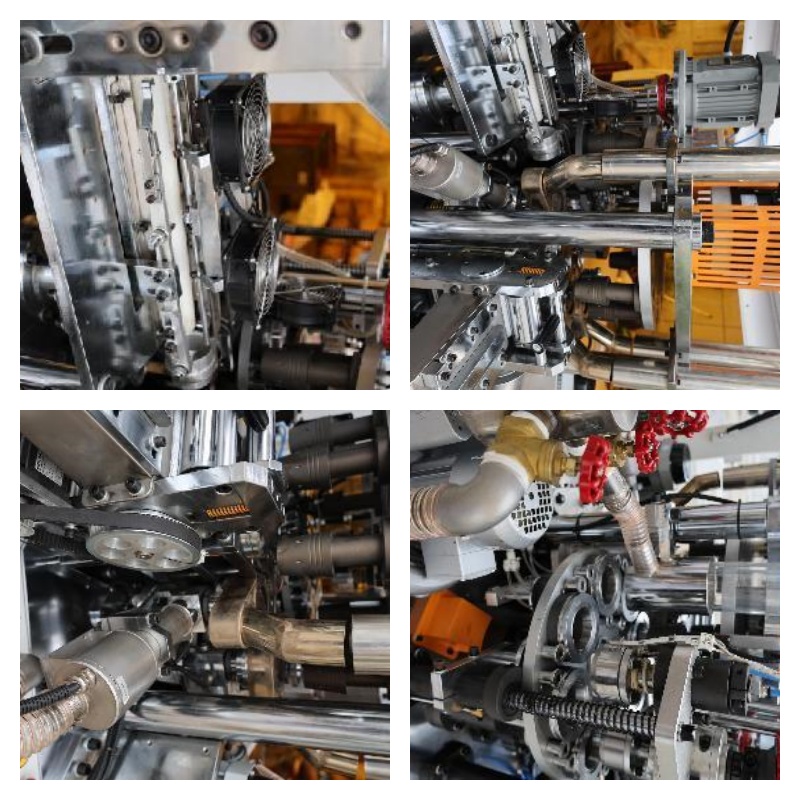

The high-speed intelligent servo paper cup machine HF – 200S features a desktop layout, which separates the transmission components and molds. The transmission components are located beneath the machine base, while the molds are on the base. This layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication and a new servo transmission structure, eliminating the old type of sector gear wheel structure, enhancing the stability of the overall transmission structure of the machine. It reduces the transmission components compared to the original design, and each part is controlled by servo, which can reduce the basic transmission components and make it easier for the operators to master. This ensures the stability and quality of the entire machine. For electrical components, PLC, photoelectric tracking, and servo feed are used to control the operation. The production capacity of this type of machine can reach 150-180 / min, suitable for the production of 6-16 ounces of cold/hot cups.
| High-speed Intelligent Paper Cup Machine HF – 200S | |
| Weight | 4200 kg |
| Machine packing specifications (without wooden box) | Length: 2800mm x Width: 1450mm x Height: 2000mm |
| Power supply configuration | Three-phase 380V, 32KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| Production capacity | 150-180 pcs/min |
| Paper type | Single-sided PE / Double-sided PE / PLA |
| Paper weight | 190-320g/㎡ |
| Paper cup size | (D1 cup opening) 60 – 90mm (D2 cup bottom) 45 – 65mm (H cup height) 60 – 138mm (h bottom depth) 5 – 12mm |
| Paper cup detection device | (Optional) |
| Control panel | 10 inches |
| Receiving cup rack | 1000 x 650 x 1600mm |
