1.7-inch desktop layout separate transmission mold, making cleaning and maintenance more convenient
2.Precise transmission structure is stable, with reliable operation and high quality
3.PLC intelligent control, production capacity 120-150 pieces per minute

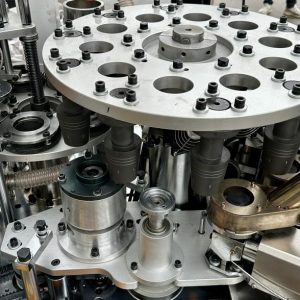

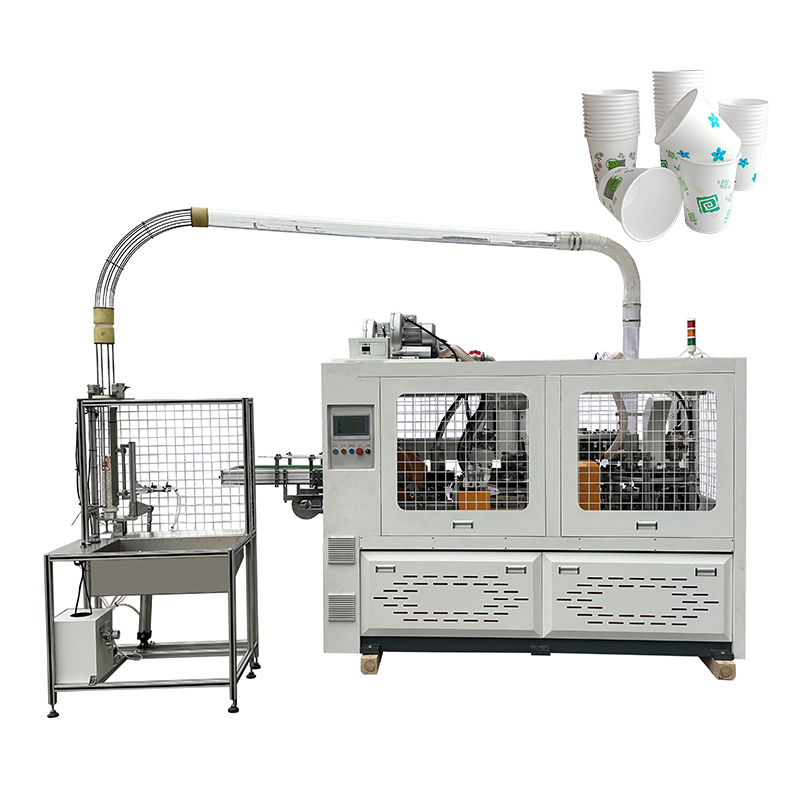

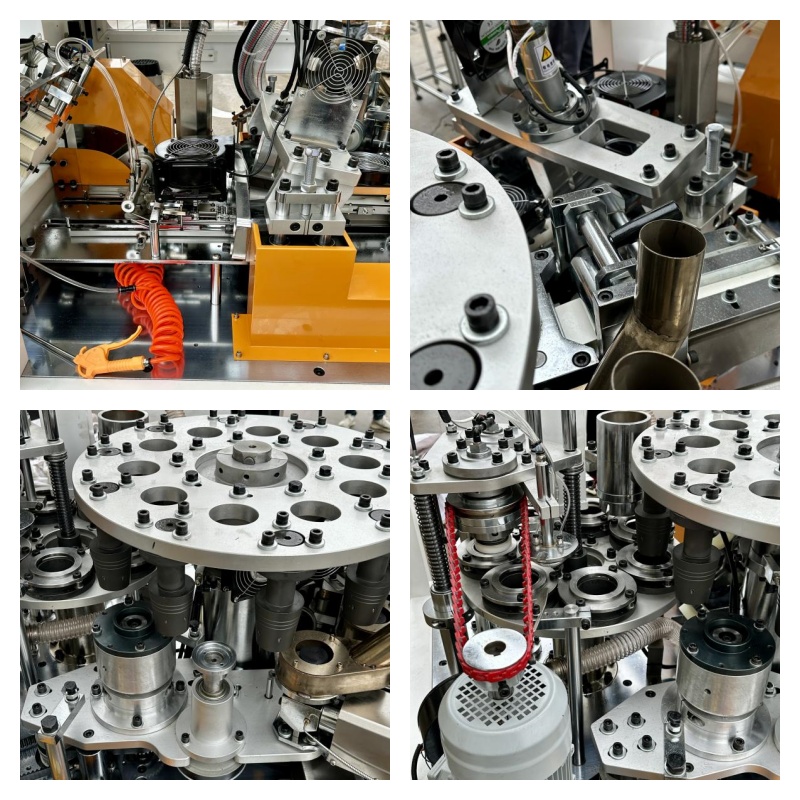

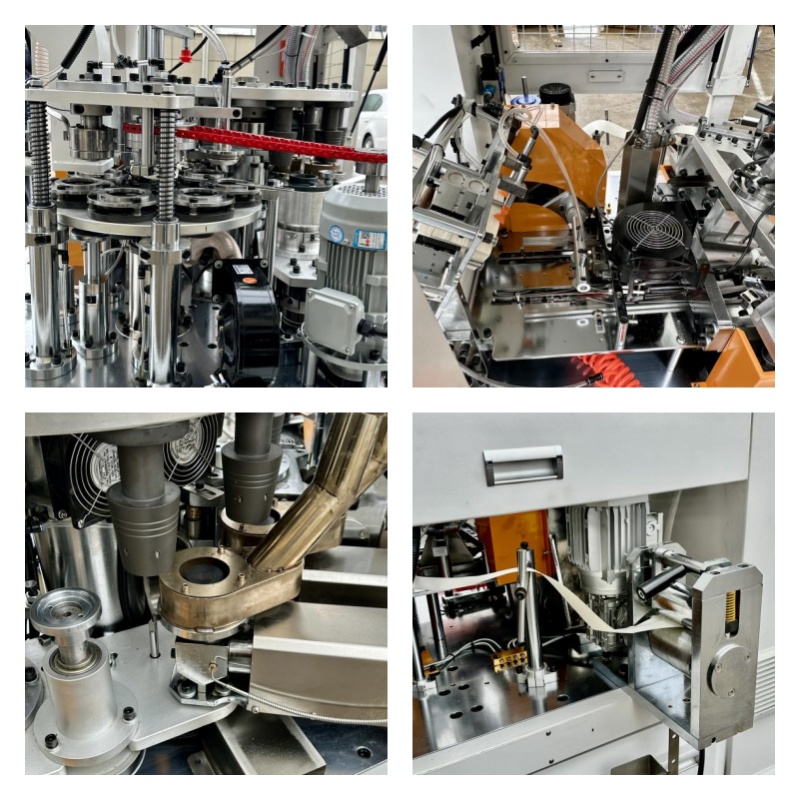

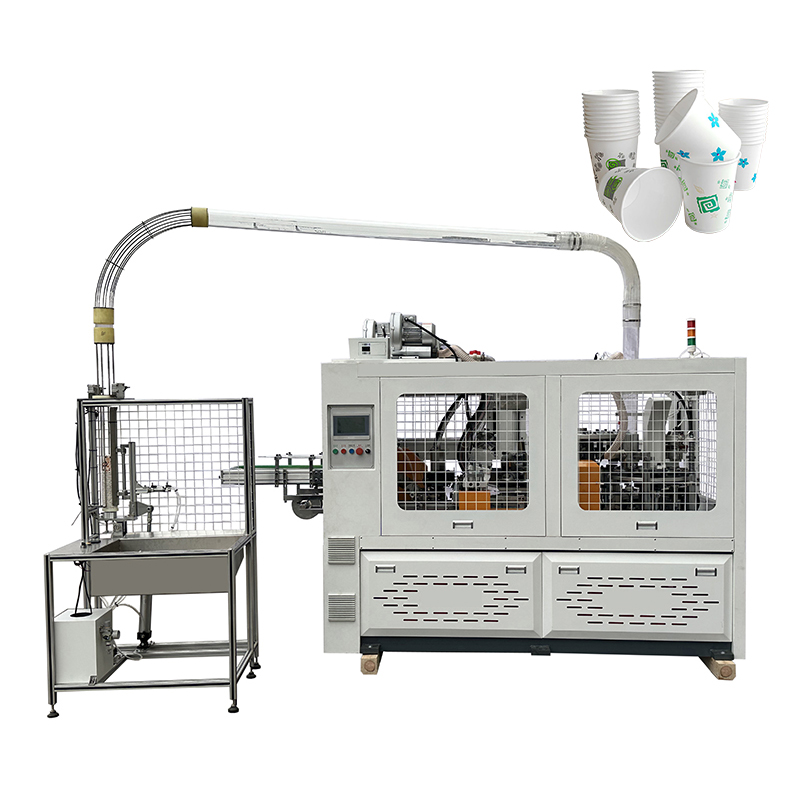

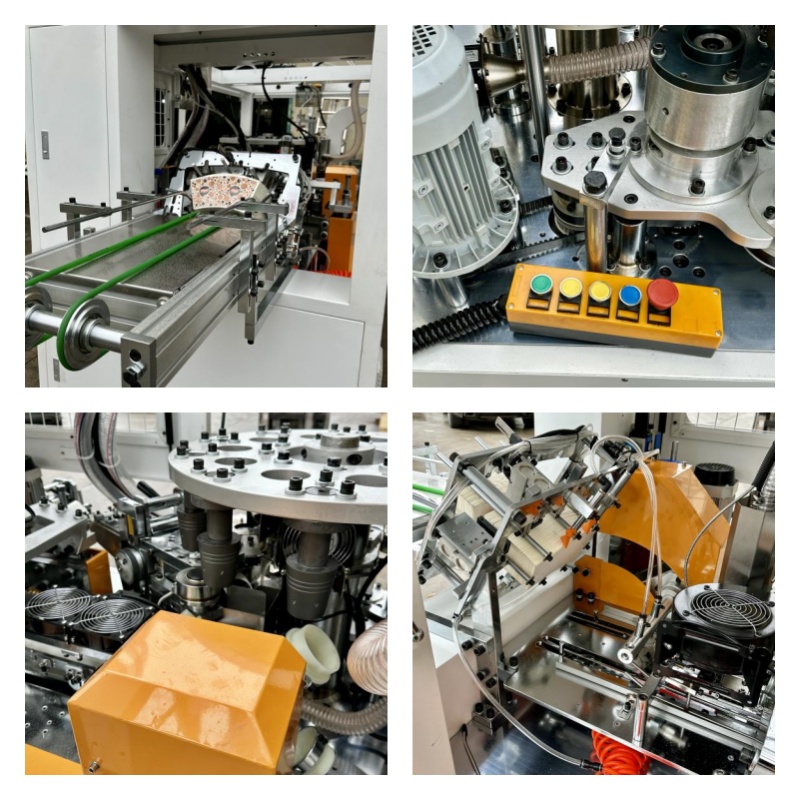

The HF-150S semi-servo smart paper cup machine uses a desktop layout that isolating the transmission parts and molds. The transmission parts are under the table and the molds are on the table, and this layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, barrel cylindrical dividing mechanism and gear transmission, to ensure the stability and quality of the whole machine. For electrical components, use PLC, photoelectric tracking and servo feed. Such machines have a production capacity of up to 120-150 / min and are suitable for producing 5-16 oz cold / hot cups.
| HF – 150S Semi-Servo Intelligent Paper Cup Machine | |
| weight | 3200 kg |
| packing without carton | Length: 2900mm x Width: 1300mm x Height: 1950mm |
| power configuration | Three-phase 380V, 24KW |
| Compressed air configuration | 0.6-0.8MPa，0.5m³/min |
| production capacity | 120-150 pcs/min |
| paper type | Single and double PE/PLA |
| paper gsm | 210-330g/㎡ |
| Cup size specification | (D1 cup opening) 50 – 90mm (D2 cup bottom) 40 – 65mm (H cup height) 50 – 138mm (h bottom depth) 5 – 12mm |
| detection device | （Optional） |
| Control panel | 7 inches |
| collection table | 1000 x 700 x 1600mm |
